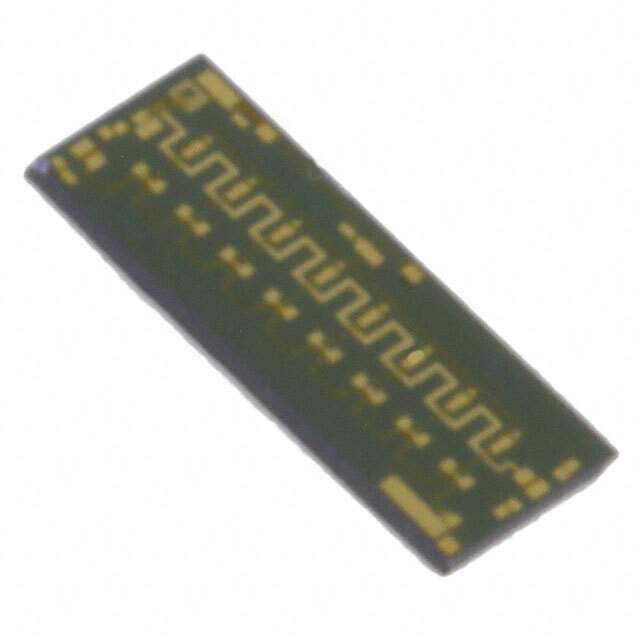

The HMC562 is a high-performance, compact, and versatile Double-Balanced Mixer, designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This innovative product is a testament to the company's commitment to delivering cutting-edge technology in the field of RF (Radio Frequency) and microwave signal processing.

Key Features

• Frequency Range: The HMC562 operates over a broad frequency range, supporting RF and LO (Local Oscillator) frequencies from 6 GHz to 10 GHz, and IF (Intermediate Frequency) from DC to 3 GHz. This wide range makes it suitable for a variety of applications, including point-to-point radios, VSAT, military and space, and test equipment.
• Conversion Loss: With a typical conversion loss of 9 dB, the HMC562 ensures efficient signal processing, maintaining signal integrity and minimizing losses during conversion.
• LO/RF Isolation: The mixer provides excellent LO to RF isolation of 25 dB typical, which is crucial for preventing signal leakage and maintaining the purity of the signal path.
• Port-to-Port Isolation: It also features high port-to-port isolation, which reduces potential interference, ensuring that signals are cleanly and accurately mixed.
• Package: The HMC562 comes in a compact and robust 4x4 mm QFN package, which allows for easy integration into various electronic systems without compromising on space or performance.

Applications

The versatility of the HMC562 Double-Balanced Mixer makes it an ideal choice for a wide array of applications. It is commonly used in:

• Point-to-Point and Point-to-Multipoint Radios
• VSAT (Very Small Aperture Terminal)
• Military Radar and ECM (Electronic Counter Measures)
• Space Payloads
• Test Equipment and Sensors

With its exceptional performance and reliability, the HMC562 from Analog Devices Inc. is a premium solution for engineers and designers looking to enhance their RF and microwave systems. Its ability to operate across a wide frequency spectrum, combined with its high isolation and low conversion loss, ensures that it can meet the rigorous demands of advanced communication and electronic warfare systems.
