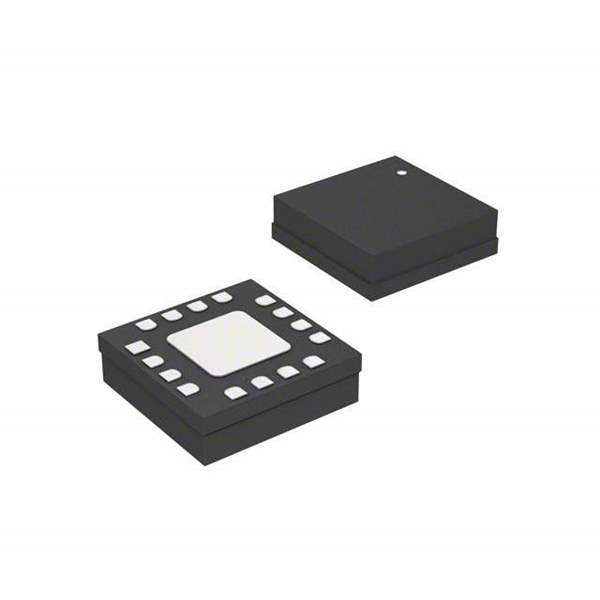

Analog Devices Inc. HMC470LP3 Voltage Variable Attenuator

The HMC470LP3 from Analog Devices Inc. is a high-performance Voltage Variable Attenuator (VVA) that offers precise control over signal levels in a compact 3x3 mm QFN package. This VVA operates over a wide frequency range from DC to 3 GHz, making it suitable for a variety of RF and microwave applications, including cellular infrastructure, test equipment, and broadband wireless systems.

Key Features

• Frequency Range: The HMC470LP3 operates effectively across a broad frequency range from DC to 3 GHz, enabling its use in a wide array of applications.
• Attenuation Range: It provides a wide attenuation range of 0 to 31 dB with high linearity, ensuring precise control of signal levels.
• Insertion Loss: The device features a low insertion loss, which minimizes the impact on the signal chain and preserves signal integrity.
• IP3 Performance: The VVA boasts excellent third-order intercept (IP3) performance, which is critical for maintaining signal clarity in the presence of strong interfering signals.
• Single Positive Control Voltage: A single positive control voltage ranging from 0 to +5V simplifies the interface and reduces the need for complex control circuitry.
• Package: Enclosed in a RoHS compliant 3x3 mm QFN surface-mount package, it is suitable for space-constrained applications.

Applications

• Cellular Infrastructure: The HMC470LP3 can be used to adjust signal levels within the RF chain of cellular base stations.
• Broadband Wireless Systems: It is ideal for controlling signal amplitude in broadband wireless access systems.
• Test Equipment: The device's precision and wide frequency range make it an excellent choice for attenuators in test and measurement setups.

The HMC470LP3 is a testament to Analog Devices Inc.'s commitment to providing high-quality, high-performance components for the RF and microwave industry. Its combination of wide frequency operation, precise attenuation control, and low insertion loss makes it a versatile solution for engineers looking to optimize their signal chain performance.
