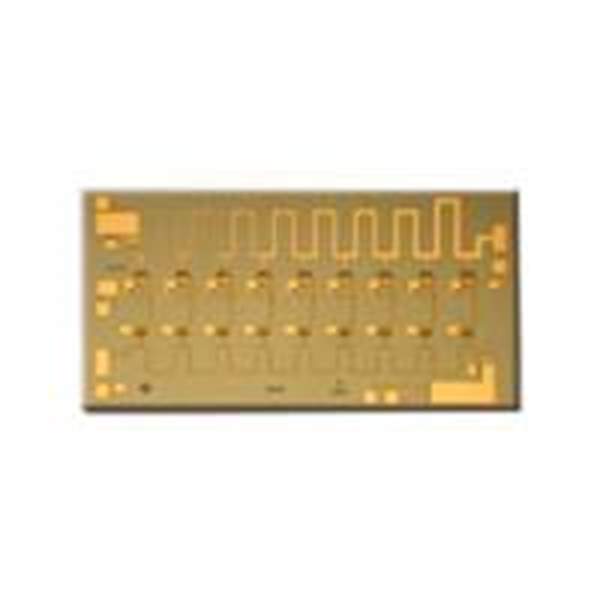

Product Overview: HMC459 from Analog Devices Inc.

The HMC459 by Analog Devices Inc. is a state-of-the-art SiGe Monolithic Microwave Integrated Circuit (MMIC) Power Amplifier designed for a broad range of RF and microwave applications. This high-performance amplifier operates within the frequency range of 5 to 6 GHz, making it an ideal choice for wireless infrastructure, satellite communication, and radar systems.

Key Features

• Frequency Range: The HMC459 covers a frequency range of 5 to 6 GHz, providing versatility for various high-frequency applications.
• Gain: With a high gain of 21 dB, this amplifier can significantly increase signal strength for improved system performance.
• Output Power: It delivers +37 dBm of saturated output power (P1dB), ensuring robust signal amplification for demanding environments.
• Efficiency: The PA offers a power-added efficiency (PAE) of 25%, optimizing power consumption for more efficient operation.
• Integrated Features: This device includes on-chip features such as input/output matching networks and DC blocking capacitors, simplifying system integration and reducing external component requirements.

Applications

• Point-to-Point Radios
• Point-to-Multipoint Radios & VSAT
• Military & Space
• Test Instrumentation

Reliability and Quality

The HMC459 is built on Analog Devices' proven Silicon-Germanium (SiGe) process, which offers exceptional reliability and performance consistency. It is available in a compact 5x5 mm surface-mount leadless package that is RoHS compliant and compatible with solder reflow temperatures, making it suitable for volume production and high-reliability applications.

Support and Resources

Analog Devices Inc. provides comprehensive technical support for the HMC459, including detailed datasheets, application notes, and design tools. Customers can also access the company's extensive network of technical support professionals for assistance in integration and optimization of the product in their specific applications.
