Analog Devices Inc. HMC349MS8G: High-Isolation SPDT Switch

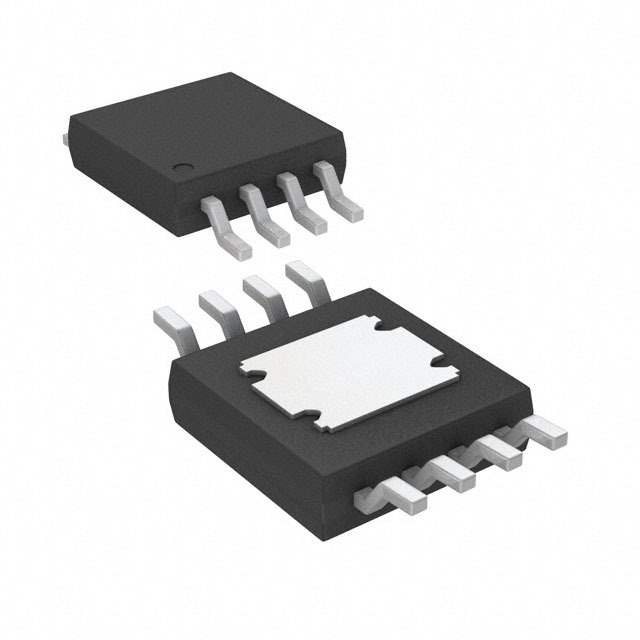

The HMC349MS8G is a high-performance, non-reflective Single-Pole, Double-Throw (SPDT) switch designed by Analog Devices Inc. This switch is ideally suited for a wide range of RF and microwave applications, including military and space, test equipment, and telecommunications systems. Its compact surface-mount MSOP8G package makes it a convenient choice for designs where space is at a premium.

This versatile switch operates over a broad frequency range from DC to 4 GHz, providing exceptional versatility for various applications. It boasts high isolation of up to 45 dB at 2 GHz, ensuring minimal crosstalk and interference between signal paths, which is critical for maintaining signal integrity in complex systems. The low insertion loss of 0.6 dB at 2 GHz further enhances the performance by ensuring minimal signal attenuation when the switch is in the on position.

The HMC349MS8G features a single supply voltage ranging from +3 to +8 VDC, allowing for easy integration into a variety of system designs without the need for complex power supply arrangements. Additionally, it offers a fast switching speed of 8 ns, which is essential for applications requiring rapid signal routing changes.

With its non-reflective design, the HMC349MS8G provides a VSWR (Voltage Standing Wave Ratio) of 1.2:1, which contributes to its excellent RF performance by reducing reflections and ensuring a better match to the transmission line impedance. This characteristic is particularly important in applications where power efficiency and signal quality are paramount.

Reliability is a hallmark of Analog Devices Inc. products, and the HMC349MS8G is no exception. It is designed to meet the stringent requirements of the most demanding environments, ensuring consistent performance over its specified temperature range of -55°C to +85°C.

In summary, the HMC349MS8G from Analog Devices Inc. is a high-quality, reliable SPDT switch that offers excellent RF performance for a wide array of applications. Its high isolation, low insertion loss, fast switching speed, and non-reflective design make it a top choice for engineers seeking to optimize their RF and microwave signal routing needs.
