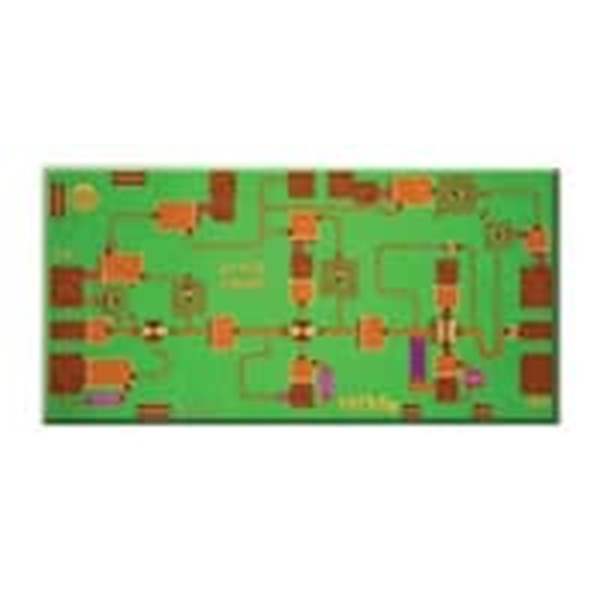

The HMC342-SX from Analog Devices Inc. is a high-performance, passive double-balanced mixer designed to address the needs of RF and microwave applications. This mixer is part of Analog Devices' Hittite Microwave Products, renowned for their quality and performance in the demanding field of RF components.

Key Features

• Frequency Range: The HMC342-SX operates over a wide frequency range, supporting IF frequencies from DC to 3.5 GHz, RF frequencies from 6 to 16 GHz, and LO frequencies from 6 to 16 GHz. This broad range makes it versatile for various applications, including telecommunications, satellite systems, and radar.
• Conversion Loss: With a typical conversion loss of 9 dB, this mixer maintains excellent signal integrity, ensuring minimal degradation in the signal translation process.
• LO/RF Isolation: The device boasts high isolation of 25 dB between the LO and RF ports, reducing potential interference and preserving signal purity.
• Input IP3: The HMC342-SX exhibits a high third-order intercept point (IP3) of 18 dBm, indicative of its ability to handle large signal strengths without significant distortion.
• Package: Housed in a compact, RoHS-compliant, surface-mount package, the HMC342-SX is designed for easy integration into a wide array of systems.

Applications

The HMC342-SX is ideal for a variety of applications, including:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space
• Electronic warfare and ECM

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products that meet the stringent requirements of RF and microwave industries. The HMC342-SX is built with this commitment in mind, ensuring reliability and performance consistency for every application it serves.

For detailed specifications, application notes, and additional resources, customers are encouraged to visit the official Analog Devices Inc. website or contact their sales and support team for personalized assistance.
