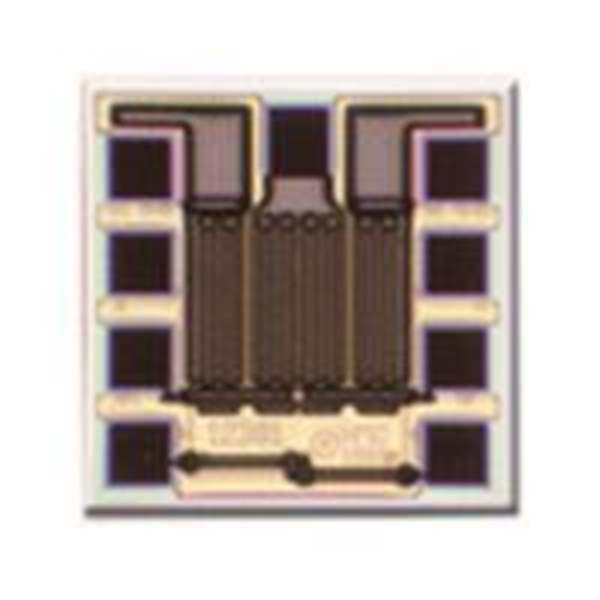

The HMC240A-SX from Analog Devices Inc. is a high-performance, non-reflective Single Pole Four Throw (SP4T) MMIC switch that operates within the frequency range of DC to 3.5 GHz. This versatile component is designed to cater to a variety of applications, including but not limited to, telecommunications, test equipment, and military end-uses. Its silicon-based construction ensures reliability and durability, making it an ideal choice for systems requiring long-term, consistent performance.

Key Features

• Frequency Range: The HMC240A-SX operates effectively across a wide frequency range from DC to 3.5 GHz, providing flexibility for use in multiple RF applications.
• High Isolation: With high isolation levels, this switch minimizes crosstalk and interference between signal paths, ensuring signal integrity in complex RF systems.
• Low Insertion Loss: The low insertion loss characteristic of the HMC240A-SX contributes to the efficient transmission of the RF signal, leading to improved overall system performance.
• Non-Reflective Design: The non-reflective nature of the switch prevents signal reflections that can cause distortions, making it suitable for high-fidelity applications.
• Fast Switching Speed: The device boasts a fast switching speed, enabling quick transitions between signal paths for applications that require rapid signal routing.

Applications

• Telecommunications Infrastructure
• Test and Measurement Equipment
• Military and Space Systems
• Wireless Infrastructure
• RF and Microwave Radios

The HMC240A-SX is available in a compact, RoHS-compliant, surface-mount package, making it suitable for integration into a wide range of electronic assemblies. Analog Devices Inc. ensures that this product meets stringent quality standards, providing designers and engineers with a reliable switching solution for their RF and microwave circuits.
