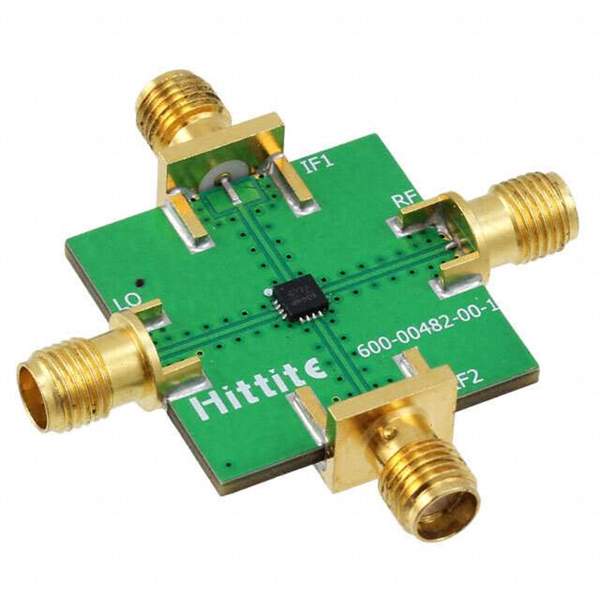

EVAL01-HMC1063LP3 Evaluation Board by Analog Devices Inc.

The EVAL01-HMC1063LP3 is a state-of-the-art evaluation board designed by Analog Devices Inc. to facilitate the testing and development of the HMC1063LP3, a high-performance, wideband Direct Digital Synthesizer (DDS). This evaluation board is an essential tool for engineers and designers who require a reliable and efficient way to assess the capabilities of the HMC1063LP3 chip in their applications.

Key Features of the EVAL01-HMC1063LP3 Evaluation Board

• Direct Digital Synthesizer Integration: The centerpiece of the evaluation board is the HMC1063LP3 DDS, which offers exceptional spectral purity and frequency agility, making it ideal for a wide range of applications including communications, test equipment, and radar systems.
• Frequency Range: The HMC1063LP3 is capable of generating frequencies from near DC up to 3.2 GHz, providing users with a versatile frequency source for their projects.
• User-Friendly Interface: The evaluation board comes with a USB interface that allows for simple connection to a PC. The included software provides an intuitive graphical user interface (GUI) for easy control and configuration of the DDS.
• Flexible Power Options: Designed with versatility in mind, the EVAL01-HMC1063LP3 can be powered through the USB connection or an external power supply, ensuring that it can be used in a variety of settings without the need for specialized power arrangements.
• Comprehensive Documentation: Analog Devices Inc. provides extensive documentation for the EVAL01-HMC1063LP3, including detailed schematics, layout files, and application notes, which assist in the rapid integration and prototyping of the HMC1063LP3 DDS.
• Robust Construction: The evaluation board is built with high-quality components and adheres to industry standards, ensuring both reliability and durability during the testing and development process.

Applications of the HMC1063LP3 DDS

The HMC1063LP3 DDS chip, when mounted on the EVAL01-HMC1063LP3 evaluation board, becomes an invaluable asset for various high-frequency applications. Its precise frequency control and wide bandwidth make it suitable for use in:

• Wireless communication systems
• Signal generation for test and measurement equipment
• Phased array radar systems
• Electronic warfare and jamming systems
• Aerospace and defense electronics

Overall, the EVAL01-HMC1063LP3 evaluation board from Analog Devices Inc. is an essential tool for professionals looking to unlock the full potential of the HMC1063LP3 DDS chip in their advanced electronic systems.
