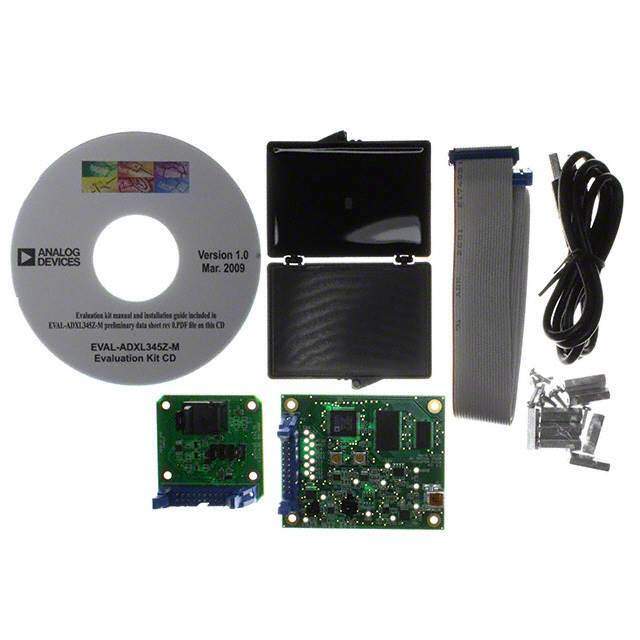

EVAL-ADXL345Z-M Evaluation Board from Analog Devices Inc.

The EVAL-ADXL345Z-M is a comprehensive evaluation board designed for the ADXL345, a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. This digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I²C digital interface.

The ADXL345 is well-suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. The device offers a variety of features such as free-fall detection, which can be used to trigger an interrupt if the device is dropped.

The EVAL-ADXL345Z-M evaluation board is designed to facilitate easy connection to a computer's USB port or other microcontroller platforms, making it a versatile tool for both development and research purposes. The board includes a range of features that make it easy to monitor and analyze the performance of the ADXL345 accelerometer in real-time.

Key features of the EVAL-ADXL345Z-M include:

• Plug and play evaluation board compatible with the ADXL345 accelerometer.
• Easy access to the accelerometer's functionalities and data via USB or I²C/SPI interfaces.
• On-board processor to handle data collection and transfer.
• Access to Analog Devices' evaluation software for data analysis.
• Ability to configure and test various features of the ADXL345, including range settings, bandwidths, and more.
• Compact and durable design for portable use.

This evaluation board is an ideal choice for engineers and designers who need to test the performance of the ADXL345 accelerometer in their applications. Whether it's for developing the next generation of consumer electronics, implementing motion detection in industrial products, or enhancing the capabilities of IoT devices, the EVAL-ADXL345Z-M provides a reliable and user-friendly platform for comprehensive testing.

With its robust set of features and ease of use, the EVAL-ADXL345Z-M by Analog Devices Inc. is an excellent tool for accelerating development and ensuring successful integration of the ADXL345 into any project.
