Analog Devices Inc. LTM2885CY#PBF - Isolated USB Transceiver

The LTM2885CY#PBF from Analog Devices Inc. is a high-performance, isolated USB transceiver module that provides complete galvanic isolation for USB data communication. This robust component is designed to enhance the reliability and protection of sensitive electronic systems, by preventing ground loops and allowing for large common mode voltage variations.

Key Features

• Integrated Isolation: The LTM2885CY#PBF features onboard isolation technology, providing up to 2500V RMS isolation for both data and power lines, ensuring safe and reliable operation even in electrically noisy environments.
• USB 2.0 Compatible: It supports full-speed (12Mbps) and low-speed (1.5Mbps) operation, making it compatible with USB 2.0 interfaces and a wide range of USB devices.
• Fixed Functionality: With no software or firmware required, the module is easy to use and provides a fixed-function application that simplifies integration into existing designs.
• Robust ESD Protection: The device includes ±15kV human body model (HBM) ESD protection on the USB transceiver interface, enhancing system robustness.
• Auto-Configuration: The LTM2885CY#PBF automatically configures the USB interface for full or low speed without any external pin selections, providing a plug-and-play experience.
• Compact Footprint: Housed in a compact surface-mount package, it is suitable for space-constrained applications.

Applications

The LTM2885CY#PBF is ideal for a variety of industrial and commercial applications where USB interfaces require isolation to protect host devices and reduce noise. Typical applications include:

• Industrial Control Systems
• Medical Equipment
• Test and Measurement Devices
• Isolated USB Hubs and Peripherals

With its combination of high-speed data transfer, isolation, and ease of use, the LTM2885CY#PBF is a versatile solution for adding isolated USB connectivity to a variety of electronic systems.

Ordering Information

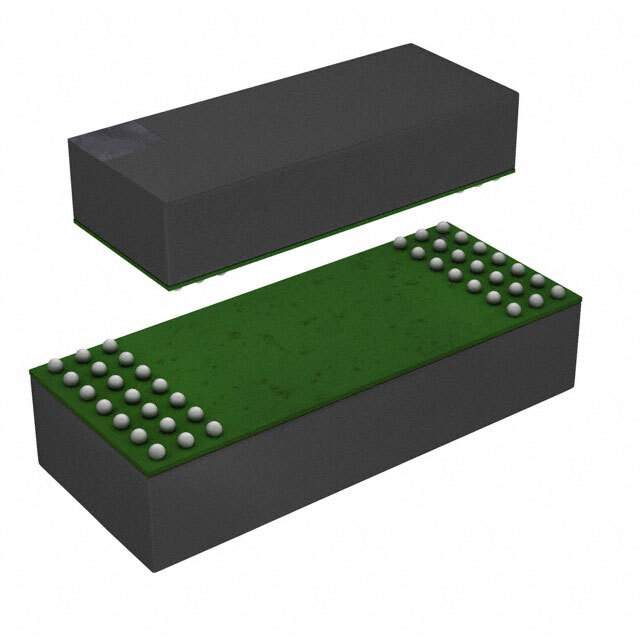

The product is available in a compact 15mm x 11.25mm x 2.8mm surface-mount LGA package, with the part number LTM2885CY#PBF. For more information or to place an order, please visit the Analog Devices Inc. website or contact an authorized distributor.
