The ADSP-BF523KBCZ-5C2 is a high-performance digital signal processor (DSP) from Analog Devices Inc., designed for a wide range of applications that require efficient, real-time signal processing capabilities. This DSP is part of the Blackfin family of products, which are known for their combination of a microcontroller architecture with a DSP instruction set, making them ideal for embedded systems that require both control and signal processing functionalities.

Key Features

• Core Performance: The Blackfin processor core operates at a frequency of up to 525 MHz, delivering high computational performance with a dual-MAC state-of-the-art signal processing engine. This makes it suitable for demanding applications such as audio and video processing, industrial control, and instrumentation.
• Memory: It includes a large on-chip memory, which is essential for efficient data management in signal processing tasks. The ADSP-BF523KBCZ-5C2 features 148KB of on-chip memory, including 132KB of RAM and 16KB of ROM.
• Peripherals: The device is equipped with a variety of peripherals, including UART, SPI, SPORT (Serial Port), and CAN interfaces, which facilitate easy communication with other devices in an embedded system.
• Power Efficiency: Designed with power-sensitive applications in mind, the ADSP-BF523KBCZ-5C2 offers dynamic power management options and a low-power sleep mode, ensuring efficient power usage without compromising performance.

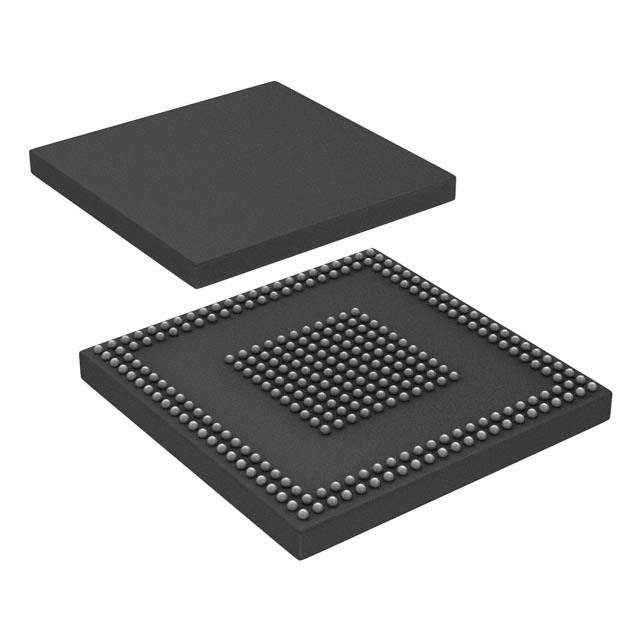

• Package: The DSP comes in a 160-ball CSPBGA (Chip Scale Package Ball Grid Array) package, which is designed to minimize space on printed circuit boards, making it a great choice for compact embedded systems.

Applications

The ADSP-BF523KBCZ-5C2 is versatile and can be used in a multitude of applications. It is particularly well-suited for:

• Audio and video processing
• Automotive infotainment and telematics
• Industrial control systems
• Medical imaging devices
• Instrumentation and measurement equipment

Overall, the ADSP-BF523KBCZ-5C2 from Analog Devices Inc. offers a robust platform for developers looking to create sophisticated and power-efficient signal processing systems, combining the best of microcontroller and digital signal processing technologies in a single chip.
