The ADV7523ABCBZ-P-1RL is a high-quality, low-power HDMI transmitter designed and manufactured by Analog Devices Inc., a leader in semiconductor solutions. This integrated circuit (IC) is specifically tailored for portable applications and is capable of providing a reliable and efficient interface between the multimedia processor and the display.

Key Features

• High-Definition Support: The device supports standard, enhanced, or high-definition video formats along with digital audio, making it ideal for high-resolution applications.
• Low Power Consumption: Engineered for portable devices, the ADV7523ABCBZ-P-1RL is optimized for low power consumption, extending the battery life of the end product.
• Advanced Color Depth: It supports deep color modes up to 36 bits per pixel, offering a rich visual experience with vibrant and detailed images.
• Audio Support: The transmitter is capable of handling 8-channel I2S audio or SPDIF audio, providing a complete multimedia interface solution.
• 3D Capabilities: With support for 3D video formats, this HDMI transmitter allows for immersive viewing experiences.
• Content Protection: The device is equipped with HDCP 1.4 (High-bandwidth Digital Content Protection), ensuring secure transmission of protected content.

Applications

The ADV7523ABCBZ-P-1RL is versatile and can be utilized in a wide range of products and applications such as:

• Mobile phones and tablets
• Digital cameras and camcorders
• Portable media players
• Gaming consoles
• Personal navigation devices

Technical Specifications

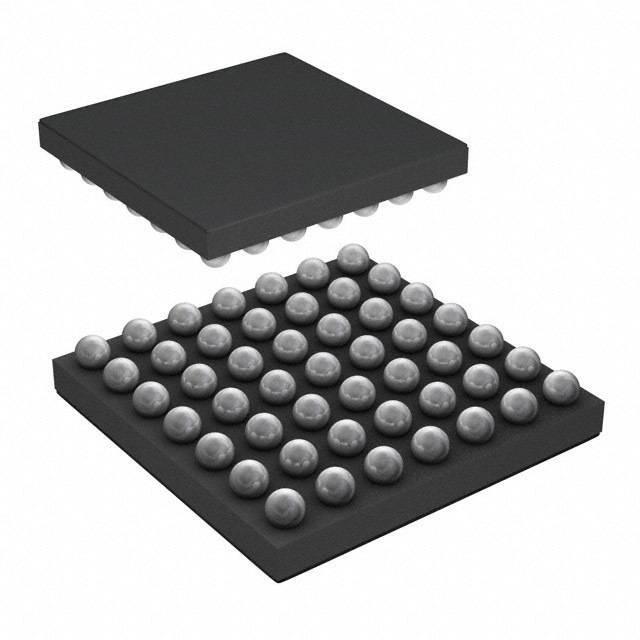

This HDMI transmitter operates over a single supply voltage and is available in a compact 49-ball WLCSP (Wafer Level Chip Scale Package), making it suitable for space-constrained applications. The ADV7523ABCBZ-P-1RL is compliant with HDMI 1.4 specifications, ensuring broad compatibility with a variety of HDMI-enabled devices.

Ordering Information

The product is available in tape and reel packaging, making it convenient for manufacturing and assembly processes. For detailed technical specifications, application support, and ordering information, customers should refer to the official Analog Devices Inc. datasheet or contact their sales representative.
