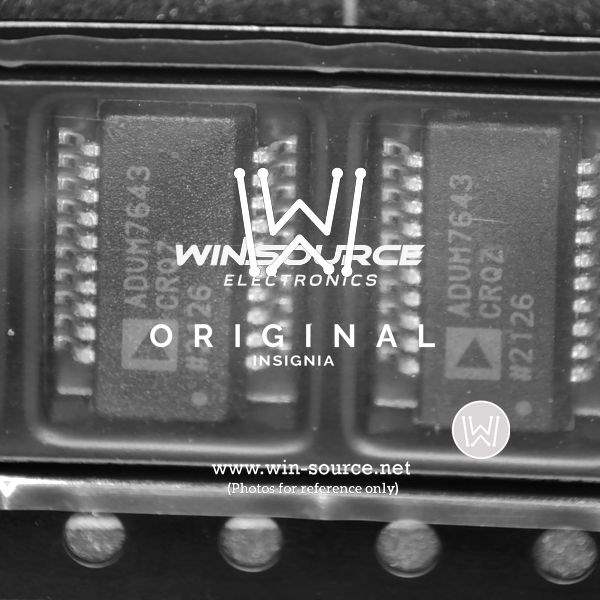

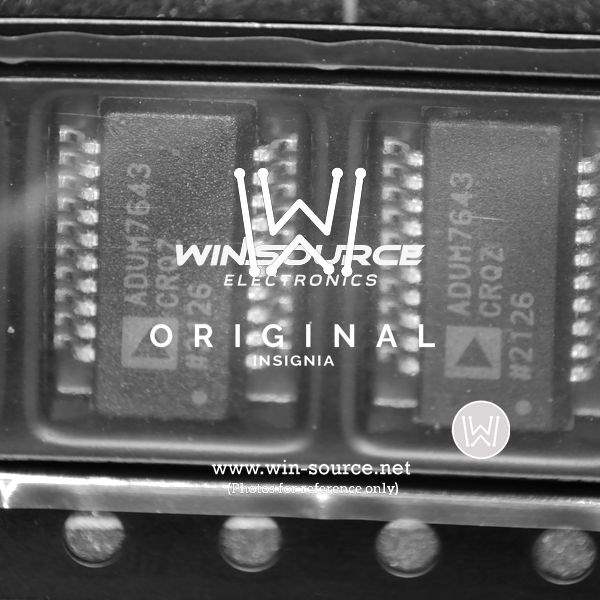

ADUM7643CRQZ - Quad-Channel Digital Isolator

The ADUM7643CRQZ is a high-performance, quad-channel digital isolator from Analog Devices Inc., designed to offer superior isolation in a wide variety of applications. This component utilizes Analog Devices' iCoupler® technology to combine high speed CMOS and monolithic air core transformer technology, providing outstanding performance characteristics that are critical for modern electrical systems.

Key Features

• High Data Rates: Supports data rates up to 25 Mbps, making it suitable for high-speed data transfer applications.
• Robust Isolation: Offers bidirectional communication and provides 5 kV RMS isolation for 1 minute per UL 1577, ensuring safety and preventing ground loops.
• Low Power Consumption: Features low power operation with 1.8 V to 5.5 V supply voltage range, which helps in reducing power consumption in your designs.
• High Integration: Integrates four independent isolation channels in a single package, saving space and simplifying design.
• Enhanced System Reliability: The device's immunity to electromagnetic interference (EMI) and high transient immunity enhance system reliability in harsh environments.
• Wide Temperature Range: Operates effectively across a wide temperature range of -40°C to +125°C, suitable for industrial applications.

Applications

With its robust feature set, the ADUM7643CRQZ is ideal for a variety of applications including:

• Industrial automation and control systems
• Isolated SPI interface
• Data communication in harsh environments
• Medical equipment with stringent isolation requirements
• Power supply control and monitoring

Package and Quality

The ADUM7643CRQZ comes in a compact, RoHS-compliant, 16-lead SOIC package that is suitable for space-constrained applications. Analog Devices Inc. ensures high-quality standards, and the product is designed for reliability and performance that industry professionals trust.

Whether you are designing a sophisticated industrial system or a critical medical device, the ADUM7643CRQZ provides the isolation, data integrity, and reliability you need to ensure your product's performance and safety.
