Analog Devices Inc. ADUM7223BCCZ Isolated Gate Driver

The ADUM7223BCCZ is a robust, high-performance isolated gate driver designed by Analog Devices Inc. to deliver precision and reliability for a wide range of applications. This component is part of the iCoupler® family, leveraging Analog Devices' proprietary technology to provide galvanic isolation between the input signal and the output gate drive.

Key Features

• Isolation Rating: The device offers an impressive isolation voltage rating of 3 kVrms, ensuring that the input logic side is safely isolated from the high voltages typically found on the output driver side.
• Output Drive: It can provide peak output currents of ±2A, making it suitable for driving a wide range of MOSFETs and IGBTs.
• High-Speed Operation: The ADUM7223BCCZ supports fast propagation delays and tight channel-to-channel matching, which is crucial for timing-critical applications.
• Integrated Miller Clamp: An integrated Miller clamp on the low-side gate driver prevents gate voltage overshoot during fast-switching events, thus enhancing the reliability and performance of the system.
• Robustness: The device is designed to withstand harsh environments and is capable of operating over a wide temperature range, making it suitable for industrial applications.

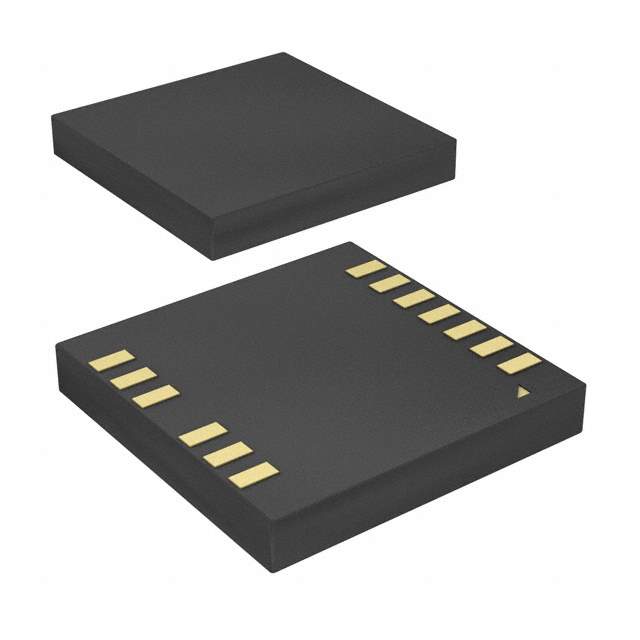

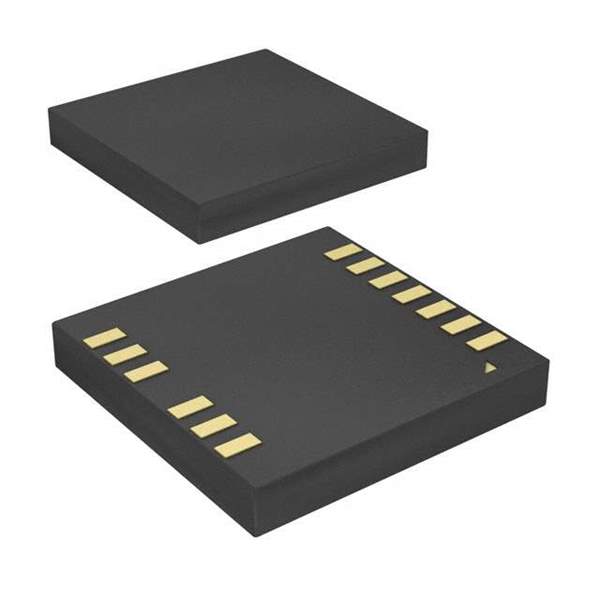

• Compact Package: Housed in a compact, surface-mount LGA package, the ADUM7223BCCZ saves valuable board space and is easier to integrate into various designs.

Applications

The versatility of the ADUM7223BCCZ makes it an ideal choice for a variety of applications, including:

• Switching power supplies
• Motor control systems
• Renewable energy inverters
• Industrial automation
• Automotive systems

With its strong emphasis on safety and performance, the ADUM7223BCCZ from Analog Devices Inc. is a reliable solution for designers looking to improve efficiency and robustness in their high-voltage, high-speed applications. Its integrated features and high isolation capabilities ensure that it meets the stringent requirements of modern electronic systems.

For detailed technical specifications, application notes, and support resources, interested parties are encouraged to visit the Analog Devices Inc. website or contact their local sales representative.
