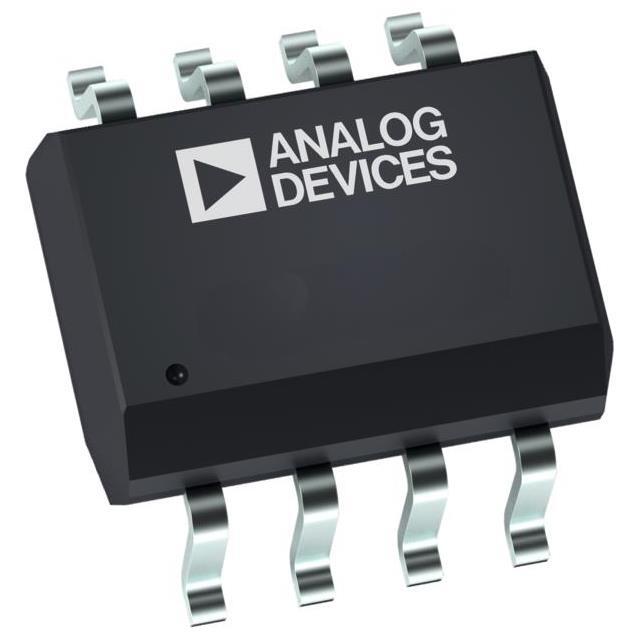

Same model may have multiple batches, images only for reference.
ADUM4223WBRWZ Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADUM4223WBRWZ

Part No ADUM4223WBRWZ
Manufacturer Analog Devices Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV 2CH GATE DVR 16SOIC
Datasheet
ADUM4223WBRWZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Technology Magnetic Coupling
Number of Channels 2
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 50kV/µs
Propagation Delay tpLH / tpHL (Max) 54ns, 54ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Peak Output 4A
Voltage - Output Supply 7.5V ~ 18V
Grade Automotive
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Case / Package 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Approval Agency CSA, UR, VDE
Package Tube
Supply and Demand Status Normal
Win Source Part Number 1498313-ADUM4223WBRWZ
Ultra Librarian 3D Model Ultra Librarian ADUM4223WBRWZ CAD Model
