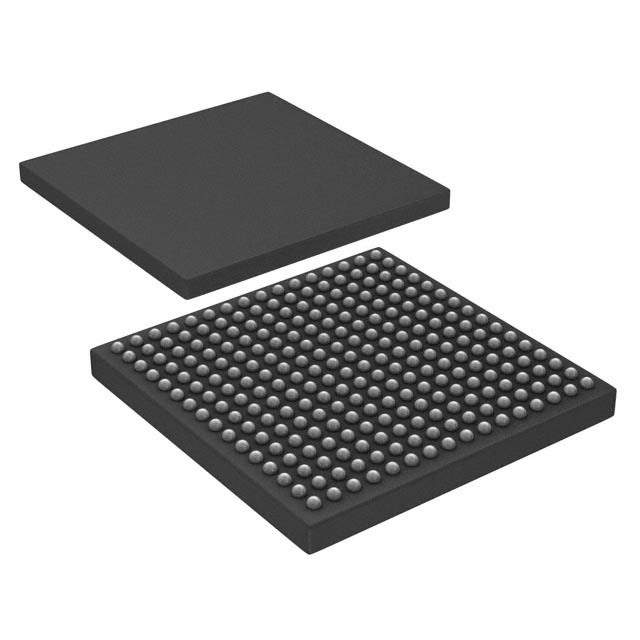

ADSP-BF561SKBCZ-5A

Part No ADSP-BF561SKBCZ-5A
Manufacturer Analog Devices Inc.
Catalog Embedded - DSP (Digital Signal Processors)
Description Blackfin Embedded Symmetric Multiprocessor
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Series Blackfin
Packaging Tray
Type Fixed Point
Interface SPI, SSP, UART
Clock Rate 533MHz
Non-Volatile Memory External
On-Chip RAM 328kB
Voltage - I/O 2.50V, 3.30V
Voltage - Core 1.25V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 256-BGA, CSPBGA
Manufacturer Package 256-CSPBGA (17x17)
Win Source Part Number 1142278-ADSP-BF561SKBCZ-5A
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Family Name ADSP-BF561
Introduction Date September 16, 1998
ECCN 3A991.a.2
Country of Origin Singapore
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ADSP-BF561SKBCZ-5A CAD Model

Description

The ADSP-BF561SKBCZ-5A is a superior dual-core digital signal processor (DSP) crafted by Analog Devices Inc., a leader in the semiconductor industry. This high-performance processor is a member of the Blackfin family, which is renowned for its combination of a microcontroller and a signal processor architecture, enabling it to handle both control-oriented tasks and complex signal processing in a seamless manner.

Key Features:

  • Core Performance: The device boasts two independent 600 MHz Blackfin DSP cores, providing the computational power needed for demanding applications.
  • Integrated Memory: With a large on-chip memory, including 148KB of L1 memory and 1MB of shared L2 SRAM, the ADSP-BF561SKBCZ-5A ensures swift data access and efficient processing.
  • External Memory Interface: It also supports a dynamic external memory interface that can extend the available storage for data-intensive operations.
  • Peripheral Set: The DSP includes a rich set of peripherals, such as UART, SPI, SPORT, and CAN interfaces, facilitating versatile connections to other devices and systems.
  • Power Efficiency: The processor is designed with power management features that help reduce power consumption during operation, making it ideal for portable and embedded applications.
  • Link Port: Dual link ports enable direct processor-to-processor communication, optimizing system performance and simplifying board design.

Applications:

The ADSP-BF561SKBCZ-5A is adept at handling a wide array of applications. It is particularly suited for:

  • Industrial control systems
  • Automotive audio and navigation systems
  • Image processing and machine vision
  • Medical instrumentation
  • Networked communication devices

With its dual-core architecture, the ADSP-BF561SKBCZ-5A enables concurrent processing of multiple tasks, which is critical for systems that require real-time processing capabilities. Its robust design and comprehensive feature set make it a versatile choice for engineers and developers looking to create sophisticated digital products that demand reliable, high-speed signal processing.
