Product Overview: ADR510ARTZ-REEL7

The ADR510ARTZ-REEL7 is a high-precision voltage reference component manufactured by Analog Devices Inc., renowned for its stability and accuracy in various applications. This product is an essential building block in precision measurement systems, providing a stable reference voltage that ensures the accuracy and consistency of the system's output.

Key Features

• Output Voltage: The ADR510ARTZ-REEL7 provides a fixed output voltage of 1.0V, which is ideal for many analog circuits that require a precise reference voltage.
• High Accuracy: With an initial accuracy of ±0.2%, this voltage reference ensures high precision in the performance of the application it is used in.
• Low Temperature Coefficient: The device has a low temperature coefficient (tempco) of 30 ppm/°C (typical), which means the output voltage remains stable across a wide temperature range, minimizing drift and variability in sensitive applications.
• Low Noise: It exhibits low noise performance, making it suitable for high-performance analog-to-digital converters (ADCs) and digital-to-analog converters (DACs), where noise can significantly affect the accuracy of the conversion process.
• Wide Operating Range: The ADR510ARTZ-REEL7 operates over a broad supply voltage range from 4V to 18V, providing flexibility in various supply conditions.

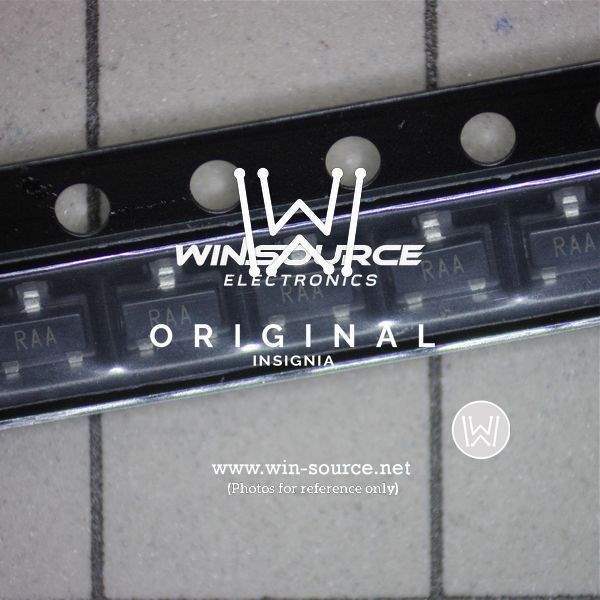

• Small Package Size: Supplied in a small SOT-23 package, it is ideal for space-constrained applications.
• Supply Current: The device features a low quiescent current of 800 µA (maximum), which is beneficial for power-sensitive applications.

Applications

The ADR510ARTZ-REEL7 is used in a variety of applications that require a stable and precise reference voltage. These include:

• Precision data acquisition systems
• Portable instrumentation
• ADCs and DACs
• Battery-powered devices
• Industrial control systems

Packaging and Availability

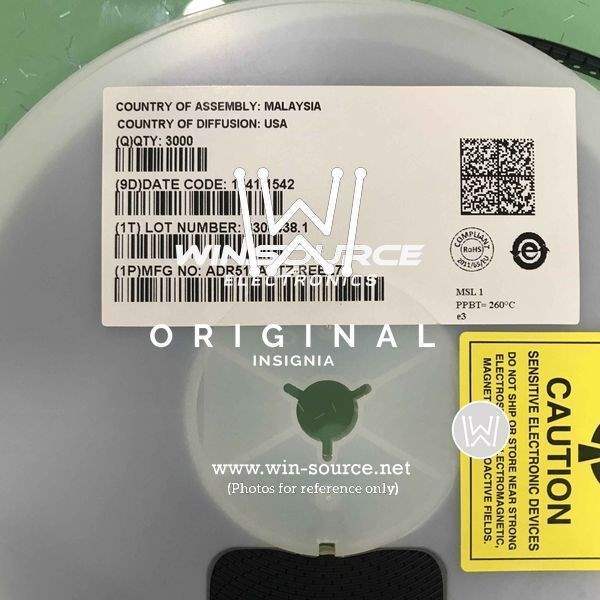

The ADR510ARTZ-REEL7 comes in a tape and reel packaging format, denoted by the 'REEL7' suffix, which facilitates automated assembly processes, making it suitable for high-volume production. The product is available for purchase from Analog Devices Inc. and its authorized distributors, ensuring reliable sourcing for both prototyping and mass production needs.

With its combination of high accuracy, low temperature coefficient, and low noise, the ADR510ARTZ-REEL7 is a reliable choice for designers looking to enhance the performance of their precision electronic systems.
