Analog Devices Inc.'s ADP2108ACBZ-1.8-R7: A Compact, High-Efficiency DC-DC Converter

The ADP2108ACBZ-1.8-R7 is a high-performance, synchronous, step-down DC-DC converter from the esteemed manufacturer, Analog Devices Inc. Designed to deliver a fixed output voltage of 1.8V, this device is an excellent choice for powering sensitive electronic components that require a stable and efficient power supply.

With an input voltage range of 2.3V to 5.5V, the ADP2108ACBZ-1.8-R7 is versatile enough to be used in a variety of applications, from battery-powered devices to regulated power supplies in industrial equipment. The device's high efficiency is achieved through its synchronous buck topology, which reduces the need for external diodes and simplifies the circuit design.

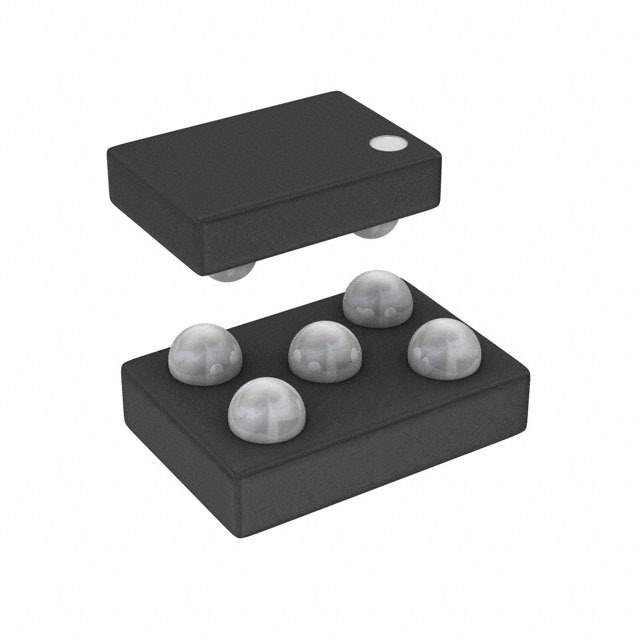

The compact package of the ADP2108ACBZ-1.8-R7, a 6-lead WLCSP (Wafer Level Chip Scale Package), allows for a minimal footprint on the PCB, making it an ideal solution for space-constrained applications. Despite its small size, the converter is capable of delivering up to 600mA of continuous output current, ensuring reliable performance even under demanding conditions.

Additional features of the ADP2108ACBZ-1.8-R7 include:

• High switching frequency of 1.2MHz, which allows for the use of small, low-cost inductors and capacitors, further reducing the overall solution size.
• Internal synchronous switch and synchronous rectifier, which enhance efficiency and eliminate the need for an external Schottky diode.
• Over-current protection and thermal shutdown features, which safeguard the device and the load from damage due to abnormal operating conditions.
• Low shutdown current of less than 1µA, which significantly reduces power consumption when the device is not active.

Whether you're designing portable devices, wireless sensors, or any application that demands a compact, efficient power solution, the ADP2108ACBZ-1.8-R7 from Analog Devices Inc. is an excellent choice. Its combination of high efficiency, small size, and robust protection features make it a reliable and versatile component for your power supply needs.
