ADP151ACBZ-3.3-R7 Voltage Regulator by Analog Devices Inc.

The ADP151ACBZ-3.3-R7 is a high-performance, low-dropout linear regulator from the reputable Analog Devices Inc. This voltage regulator offers a fixed output voltage of 3.3V, making it an ideal choice for a wide range of applications that require a stable and efficient power supply. The device is designed to support a maximum output current of 200mA, which is sufficient for many small-scale electronic components and systems.

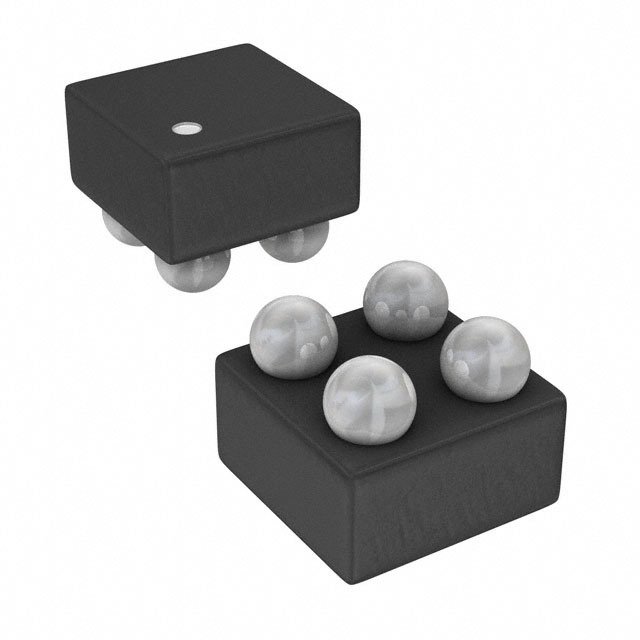

Encased in a compact 4-ball WLCSP (Wafer Level Chip Scale Package), the ADP151ACBZ-3.3-R7 is optimized for space-constrained applications. Despite its small size, it provides excellent performance with features such as low dropout voltage, which ensures efficient operation even when the input voltage is close to the output voltage. This characteristic is particularly beneficial for battery-powered devices where maximizing the usage of the available voltage is crucial.

The regulator boasts an impressive low quiescent current of 28µA (typical), making it an excellent choice for portable and battery-operated equipment where power conservation is a priority. Furthermore, the ADP151ACBZ-3.3-R7 is designed with an internal thermal overload protection and current limit features, which safeguard the device and the system from damage due to excessive current or temperature conditions.

Another notable feature of this voltage regulator is its low noise performance, which is critical for sensitive RF and analog circuits. The device's low noise output ensures that it can be used in applications that demand minimal interference and high signal integrity. Additionally, the ADP151ACBZ-3.3-R7 is stable with small 1µF ceramic capacitors, which reduces the overall solution size and component cost.

With a wide operating temperature range from -40°C to +125°C, the ADP151ACBZ-3.3-R7 is versatile and reliable under various environmental conditions. This makes it suitable for industrial, automotive, and commercial applications that may experience extreme temperatures.

In summary, the ADP151ACBZ-3.3-R7 from Analog Devices Inc. is a robust and efficient voltage regulator that offers a fixed 3.3V output with excellent thermal protection, low noise, and high power supply rejection ratio (PSRR) in a miniature package, making it a top choice for designers looking to optimize power management in their electronic designs.
