ADN2818ACPZ-RL7 - Continuous Rate Clock and Data Recovery IC from Analog Devices Inc.

The ADN2818ACPZ-RL7 is a versatile and high-performance Continuous Rate Clock and Data Recovery (CDR) Integrated Circuit (IC) designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This advanced chip is engineered to provide robust signal conditioning and clock/data recovery for a wide array of applications that require precise and reliable data transmission.

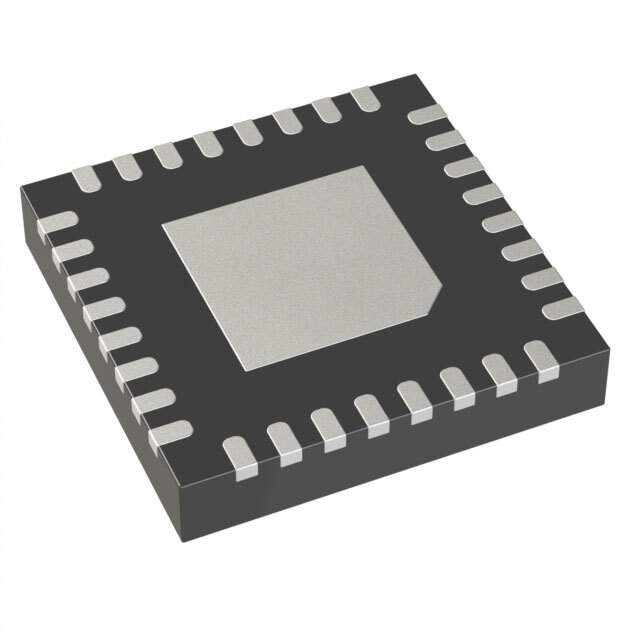

This CDR device is capable of supporting data rates from 10.7 Mb/s to 12.5 Gb/s, making it an ideal solution for various communication standards. The product is packaged in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) that is RoHS compliant and is designated with the part number ADN2818ACPZ-RL7, where "RL7" denotes the reel and tape packaging variant, suitable for automated assembly processes.

The ADN2818ACPZ-RL7 offers a No Reference Clock (NRC) operation mode, which eliminates the need for an external reference clock, simplifying design and reducing system costs. It also features an integrated Voltage Controlled Oscillator (VCO), which allows the device to recover the clock and data signals from the incoming data stream without the need for an external VCO.

Key features of this product include its wide operating temperature range, low power consumption, and the inclusion of loss of signal (LOS) detection, which ensures reliable operation even in challenging signal environments. The IC also provides programmable functions such as frequency offset, loop bandwidth, and output amplitude, offering designers flexibility to tailor the device to specific application requirements.

Applications for the ADN2818ACPZ-RL7 are diverse and include optical networking such as SONET/SDH, Ethernet, Fibre Channel, and other data communication systems where signal integrity is paramount. With its robust feature set and high level of integration, the ADN2818ACPZ-RL7 is an excellent choice for system designers looking for a CDR solution that delivers performance, reliability, and ease of use.

For detailed technical specifications, application notes, and support resources, please visit the Analog Devices Inc. website or contact their customer support for personalized assistance.
