Product Overview: ADM8832ACPZ from Analog Devices Inc.

The ADM8832ACPZ is a high-performance charge pump DC/DC converter manufactured by Analog Devices Inc., a renowned leader in the semiconductor industry. This compact and efficient component is designed to provide a regulated output voltage from an unregulated input voltage, making it an ideal solution for portable electronic devices where space and power efficiency are critical considerations.

Key Features

• Adjustable Output Voltage: The ADM8832ACPZ allows for a flexible output voltage range, which can be set by the user according to the needs of the application.
• High Efficiency: This device employs a charge pump mechanism that enables it to achieve high power conversion efficiency, thereby extending battery life in portable applications.
• Low Noise Operation: The ADM8832ACPZ is designed to operate quietly, minimizing electromagnetic interference and ensuring stable performance in noise-sensitive electronics.

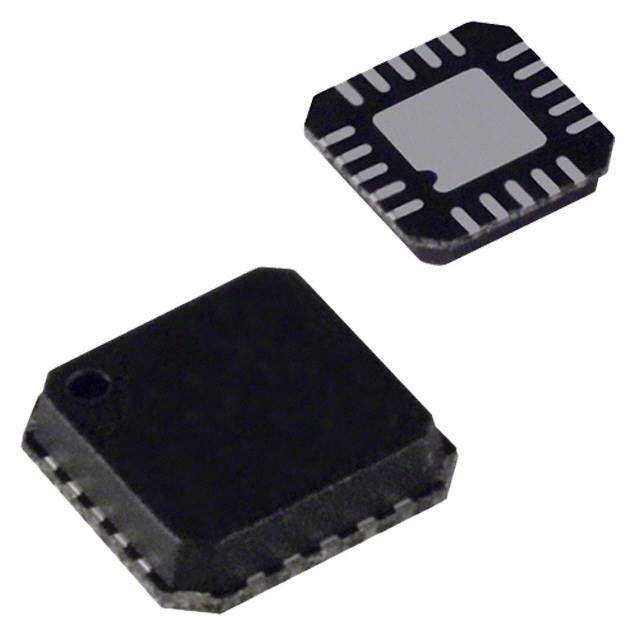

• Small Package Size: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the ADM8832ACPZ saves valuable board space and is suitable for space-constrained applications.
• Thermal Protection: The device includes thermal overload protection, safeguarding the system from potential damage due to overheating.

Applications

The versatility of the ADM8832ACPZ makes it an excellent choice for a wide range of applications, including:

• Mobile Phones
• Portable Media Players
• Handheld Gaming Devices
• Digital Cameras
• Personal Digital Assistants (PDAs)

Technical Specifications

The ADM8832ACPZ operates over a broad input voltage range and is capable of delivering a stable output with high accuracy. The device's specifications include:

• Input Voltage Range: 2.7V to 5.5V
• Programmable Output Voltage up to 5V
• Quiescent Current: Low
• Package: 16-lead LFCSP (3mm x 3mm)
• Operating Temperature Range: -40°C to +85°C

With its robust feature set and compact form factor, the ADM8832ACPZ from Analog Devices Inc. stands out as a superior choice for designers looking to enhance the efficiency and performance of their power management systems in portable electronic devices.
