ADM6711TAKS-REEL7: Ultra-Low Power Microprocessor Supervisory Circuit

The ADM6711TAKS-REEL7 is a state-of-the-art microprocessor supervisory circuit designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This compact, high-accuracy device is engineered to monitor power supplies in digital systems and provide a reliable reset signal to the host processor, ensuring proper system reboot without manual intervention.

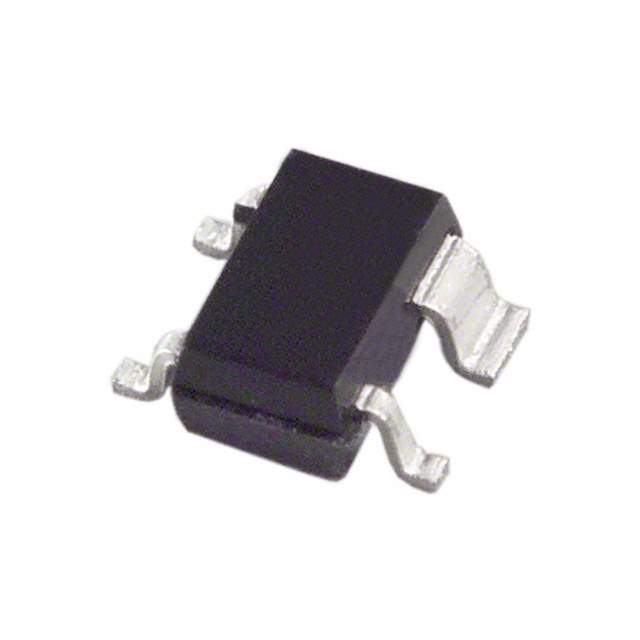

Encased in a small SOT-23 package, the ADM6711TAKS-REEL7 is ideal for space-constrained applications. It is part of a product reel, indicating that it is typically sold in large quantities suitable for high-volume production needs. This device is particularly well-suited for portable and battery-powered equipment due to its ultra-low power consumption, which helps to extend the operational life of the product it is safeguarding.

Key features of the ADM6711TAKS-REEL7 include:

• Power Supply Monitoring: Precision monitoring of 3.08V power supply voltages, ensuring that the connected microprocessor or digital system operates within the specified voltage range.
• Reset Output: The device generates a reset signal whenever the monitored power supply falls below the factory-set threshold, helping to prevent system errors and data corruption.
• Low Power Consumption: With a quiescent current of just 10 µA, this supervisory circuit minimizes the power drain on the system's power source.
• Manual Reset Input: An additional feature allowing for an external trigger to initiate a system reset, providing an extra layer of control.
• Reset Timeout: The reset output remains active for a minimum of 140 ms after the supply voltage rises above the reset threshold, ensuring system stability.

The ADM6711TAKS-REEL7 is engineered for reliability and accuracy, with a tight reset threshold tolerance that ensures consistent performance across the specified temperature range. Whether used in complex digital systems or simple microcontroller-based applications, this supervisory circuit from Analog Devices Inc. delivers the security and stability needed for uninterrupted system operation.

For designers and engineers looking for a robust power monitoring solution, the ADM6711TAKS-REEL7 offers a perfect blend of performance, power efficiency, and compact form factor, making it an excellent choice for a wide range of electronic devices.
