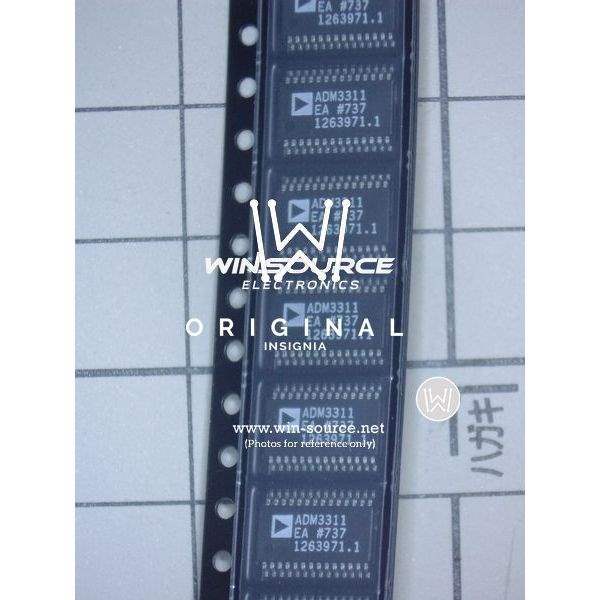

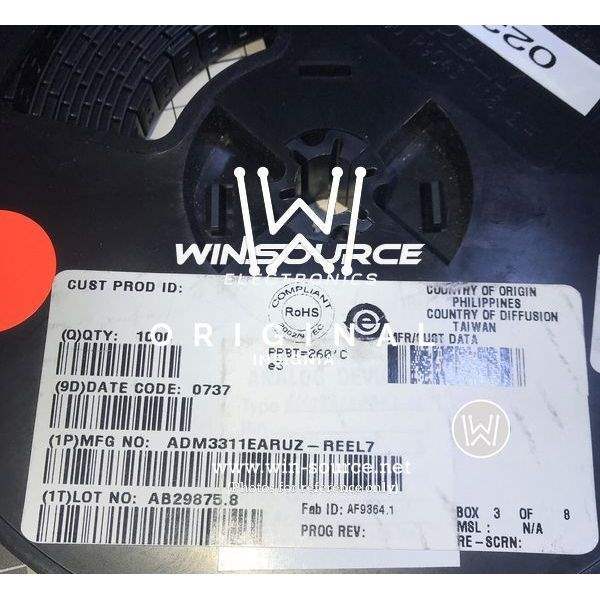

The ADM3311EARU-REEL is a high-performance, 5-channel RS-232/V.28 transceiver from Analog Devices Inc., designed to operate from a single 3.3V power supply. This integrated circuit is ideal for applications requiring efficient serial port communication in a compact package. The ADM3311EARU-REEL is part of the REEL packaging series, which ensures compatibility with automated assembly processes, making it a suitable choice for mass production environments.

Key Features

• Interface Type: RS-232/V.28
• Number of Drivers/Receivers: 3/5
• Data Rate: Up to 230 kbps
• Operating Voltage: 3.0V to 3.6V
• ESD Protection: ±15 kV on Human Body Model
• Low Power Shutdown: Yes
• Temperature Range: -40°C to +85°C
• Mounting Type: Surface Mount
• Package / Case: 28-TSSOP (0.173", 4.40mm Width)

Applications

The ADM3311EARU-REEL is versatile and can be used in a wide range of applications. Its primary use is in the interface between data communication equipment and data terminal equipment, such as:

• Notebook, Subnotebook, and Palmtop Computers
• Battery-Powered Equipment
• Handheld Equipment
• Peripherals
• Printers

Product Benefits

This transceiver provides several benefits to designers and manufacturers. The single-chip solution reduces board space requirements and simplifies design. The low-voltage operation helps to conserve power, making it suitable for battery-operated devices. Additionally, the built-in electrostatic discharge (ESD) protection increases the robustness of the end product against environmental stresses.

Quality and Reliability

Analog Devices Inc. is known for its high-quality products, and the ADM3311EARU-REEL is no exception. It meets stringent industry standards for performance and reliability, ensuring a long operational life for devices that incorporate this transceiver.
