Product Overview: ADM242ARZ by Analog Devices Inc.

The ADM242ARZ is a high-performance, dual-channel RS-232/V.28 transceiver from Analog Devices Inc., designed to fulfill the needs of EIA-232-E and V.28 communications interfaces in applications requiring ±12 V driver and receiver operation. This integrated circuit is specifically engineered to operate from a single 5 V power supply, making it an ideal choice for systems that require efficient power management.

Key Features

• Integrated Charge Pump Circuitry: The ADM242ARZ includes an onboard charge pump that generates the necessary ±12 V levels, eliminating the need for additional power supplies and thus simplifying the design and reducing the overall component count.
• Low Power Consumption: With its advanced design, this transceiver ensures low power consumption, which is crucial for battery-powered and power-sensitive applications.
• High Data Rate: It supports data rates up to 200 kbps, allowing for high-speed data transmission and making it suitable for a wide range of communication tasks.
• ESD Protection: The device features built-in electrostatic discharge (ESD) protection circuits, safeguarding the transceiver against damage from static electricity and enhancing its robustness in harsh environments.
• Flexible Operation: The ADM242ARZ provides two drivers and two receivers, which can be used in full-duplex or half-duplex communication modes, offering design flexibility.

Applications

The ADM242ARZ is versatile and can be used in various applications, including:

• Telecommunications equipment
• Peripheral interfaces
• Data acquisition systems
• Battery-powered devices
• Portable computing

Package and Reliability

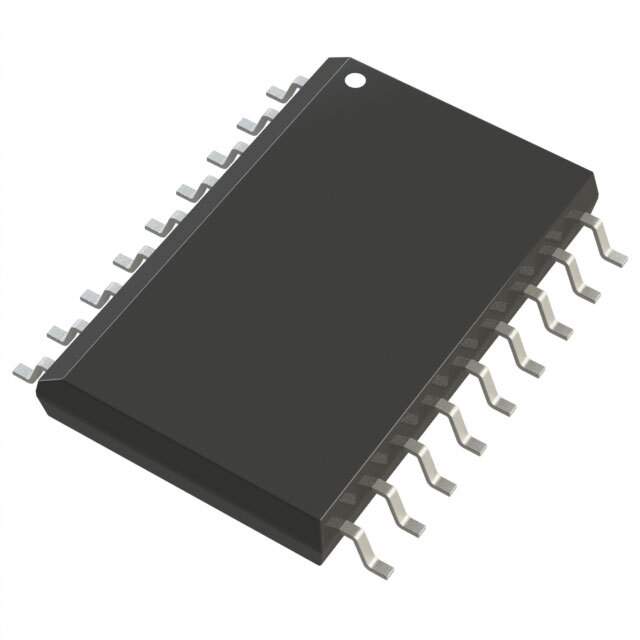

The device is offered in a compact SOIC (Small Outline Integrated Circuit) package, designated by the "RZ" suffix in its part number. This packaging ensures a small footprint, making it suitable for space-constrained applications. The ADM242ARZ also passes rigorous reliability tests, ensuring consistent performance over its operational lifespan.

For designers and engineers looking for a reliable and efficient RS-232/V.28 transceiver, the ADM242ARZ from Analog Devices Inc. offers a blend of performance, power efficiency, and versatility, making it an excellent choice for a wide range of communication interfaces.
