Analog Devices Inc. ADM1278-3ACPZ Hot Swap Controller and Digital Power Monitor

The ADM1278-3ACPZ from Analog Devices Inc. is a sophisticated hot swap controller and digital power monitor IC designed to protect and monitor high-availability systems. This cutting-edge component ensures safe board insertion and removal from live backplanes, preventing glitches and surges that can damage sensitive electronic equipment.

With its precision current-sensing and control capabilities, the ADM1278-3ACPZ allows for the seamless management of current during the insertion of circuit boards into a powered system. It employs a robust MOSFET to regulate the inrush of current, providing a controlled ramp-up of the supply voltage to the load, thereby preventing electrical overstress and improving system reliability.

One of the key features of this product is its integrated 12-bit analog-to-digital converter (ADC), which enables real-time monitoring of voltage, current, and power for the supply rails that it services. This functionality is crucial for systems that require precise power management and diagnostic capabilities. The device can communicate with a host controller through an I2C interface, allowing for the retrieval of measurement data and the configuration of various parameters, such as current limit thresholds and response times.

The ADM1278-3ACPZ also offers a range of protection features that safeguard against overcurrent, overvoltage, undervoltage, and overtemperature conditions. Its fast response time ensures quick action to prevent damage to the electronic system in the event of a fault condition. Additionally, the device provides a circuit breaker function, which can be programmed to latch off after a fault or to automatically retry operation after a delay.

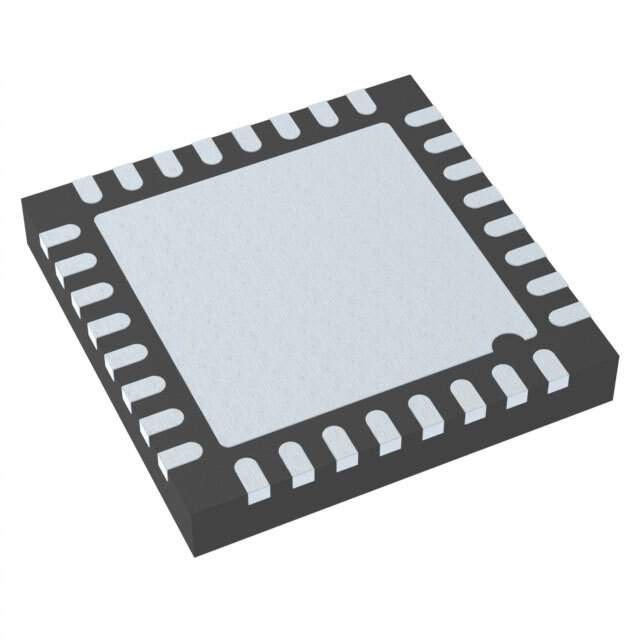

Available in a compact 32-lead LFCSP package, the ADM1278-3ACPZ is suitable for space-constrained applications while still delivering robust performance. It is ideal for use in servers, storage systems, network routers, and other telecommunications and industrial equipment that require high-reliability power management solutions.

With its combination of hot swap control, precise monitoring, and comprehensive protection, the ADM1278-3ACPZ from Analog Devices Inc. represents a state-of-the-art solution for advanced power management in critical electronic systems.
