ADM1278-1AACPZ - Hot Swap Controller and Digital Power Monitor

The ADM1278-1AACPZ from Analog Devices Inc. is a state-of-the-art Hot Swap Controller and Digital Power Monitor, designed to protect and monitor high-availability servers and telecommunications equipment. This advanced integrated circuit allows for the safe insertion and removal of circuit boards from live backplanes, preventing damage to electronic components caused by inrush currents and voltage spikes.

Key Features

• Integrated Hot Swap Controller: The ADM1278-1AACPZ ensures that the electronic card is safely powered on and off, providing a controlled ramp-up of voltage to the load, thereby extending the life of the system components.
• Advanced Power Monitoring: With its precise measurement capabilities, the device can monitor both the supply voltage and current, offering real-time power monitoring through an integrated 12-bit analog-to-digital converter (ADC).
• Adjustable Current Limit: Users can set the current limit threshold via an external resistor, which provides flexibility to accommodate different card designs and power requirements.
• Black Box Recorder Function: The product features a black box recorder that logs fault conditions, helping with system diagnostics and improving reliability.
• PMBus Interface: The ADM1278-1AACPZ includes a PMBus interface for communication with microcontrollers or processors, enabling digital control and monitoring of the power system.
• High Voltage Operation: It is designed to operate over a wide range of input voltages, making it suitable for systems with high bus voltages.

Applications

Suitable for a variety of high-power and high-availability applications, the ADM1278-1AACPZ is commonly used in:

• Server and Telecom Hot Swap Applications
• Network Routers and Switches
• Data Storage Systems
• Industrial/Embedded Computing

Product Specifications

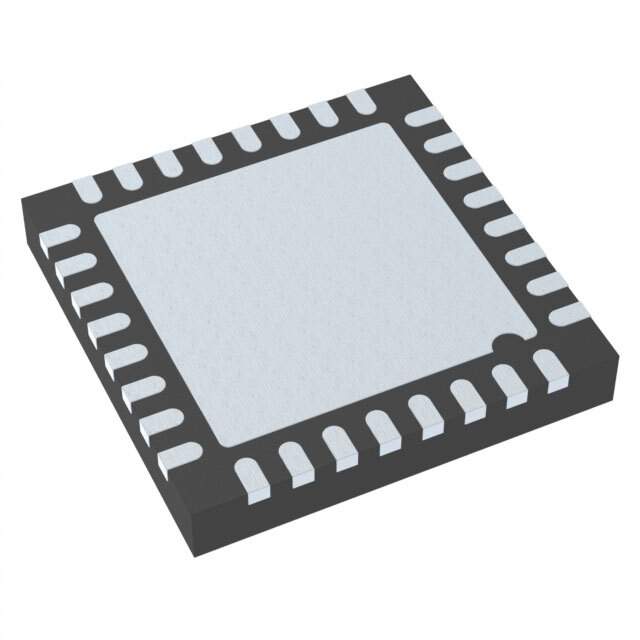

The ADM1278-1AACPZ is available in a compact 32-lead LFCSP package, ensuring a minimal footprint on the PCB. Its robust design is characterized by an operating temperature range of -40°C to +125°C, catering to environments requiring high thermal resilience.

With its combination of protective features, monitoring capabilities, and digital interfacing, the ADM1278-1AACPZ from Analog Devices Inc. stands as an essential component for modern electronic systems requiring efficient power management and system protection.
