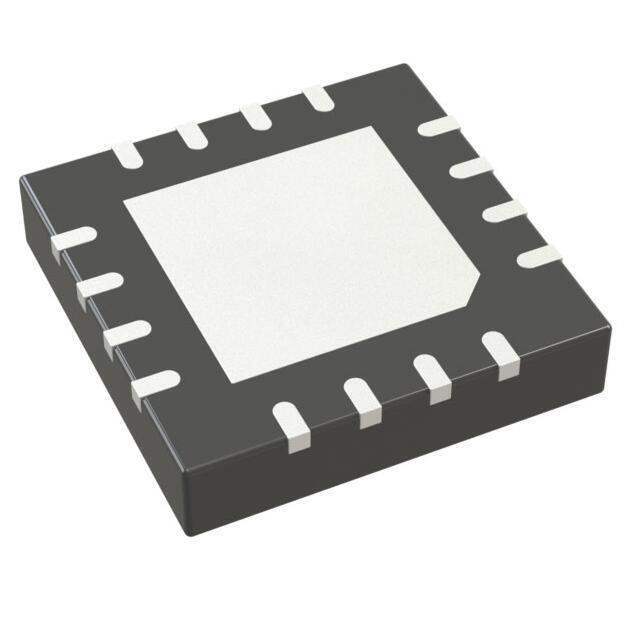

Same model may have multiple batches, images only for reference.

ADL5604ACPZ-R7

Get a Quote

Part No	ADL5604ACPZ-R7
Manufacturer	Analog Devices Inc.
Catalog	RF Amplifiers
Description	IC AMP GPS 700MHZ-2.7GHZ 16LFCSP
Datasheet	ADL5604ACPZ-R7 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Description

The ADL5604 is a very broadband RF driver amplifier that operates over the wide frequency range of 700 MHz to 2700 MHz.
The ADL5604 is also highly linear and has a very low power consumption, enabling the driver to be packaged in a compact 16-lead, 4 mm × 4 mm LFCSP.
For thermal management, the ADL5604 uses an exposed paddle, and the upper and lower pins of the package are all grounded, which gives the ADL5604 excellent thermal transfer characteristics.
