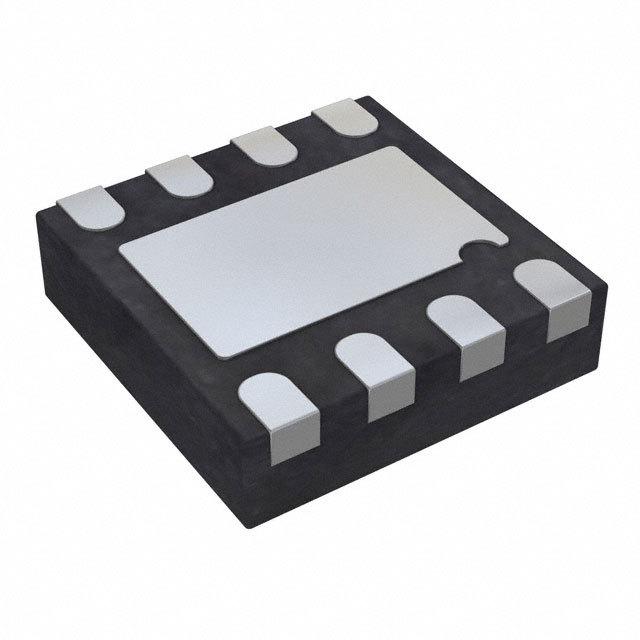

ADL5542ACPZ-R7 RF/IF Gain Block from Analog Devices Inc.

The ADL5542ACPZ-R7 is a high-performance RF/IF (radio frequency/intermediate frequency) gain block designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This device is specifically engineered to provide consistent gain and linearity across a wide frequency range, making it a versatile and essential component for a variety of RF applications.

Key Features:

• Frequency Range: The ADL5542ACPZ-R7 operates over a broad frequency range, accommodating various applications from 30 MHz to 4 GHz. This makes it suitable for a wide array of RF systems, including wireless infrastructure, broadband, and instrumentation.
• High Linearity: With an OIP3 (Output Third-Order Intercept Point) of 43.5 dBm at 1900 MHz, the device offers excellent linearity, which is critical for maintaining signal integrity in complex RF environments.
• Fixed Gain: The device provides a fixed gain of 15 dB, which ensures consistent amplification of the input signal without the need for external gain control components.
• Single Power Supply: The ADL5542ACPZ-R7 operates on a single 5 V supply, simplifying power management in system designs.
• Compact Package: Encased in a compact 3 mm x 3 mm LFCSP (Lead Frame Chip Scale Package), the ADL5542ACPZ-R7 is designed for space-constrained applications, providing high performance in a small footprint.
• Robust Temperature Performance: The device is specified for operation over the −40°C to +85°C temperature range, offering reliable performance across various environmental conditions.

Applications:

The ADL5542ACPZ-R7 is ideally suited for a range of applications, including but not limited to:

• Wireless infrastructure (base stations, repeaters)
• CATV/broadband
• General-purpose RF and IF amplification
• Test equipment and sensors

Whether you're designing for commercial telecommunications, industrial measurement, or high-frequency data transmission, the ADL5542ACPZ-R7 from Analog Devices Inc. offers a reliable and efficient solution for your RF/IF gain block needs.
