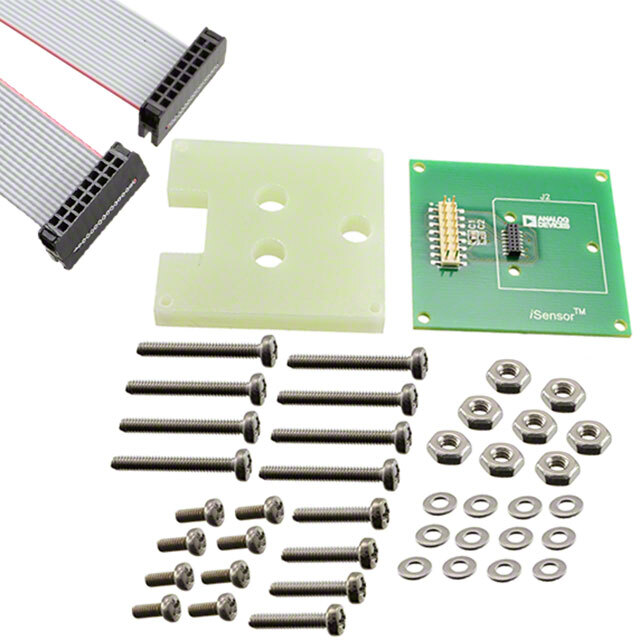

Same model may have multiple batches, images only for reference.
ADIS16209/PCBZ Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADIS16209/PCBZ

Part No ADIS16209/PCBZ
Manufacturer Analog Devices Inc.
Catalog Evaluation Boards - Sensors
Description BOARD EVAL FOR ADIS16209
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Sensor Type Accelerometer, Inclinometer
Sensing Range ±1.7g, ±90°
Interface Serial, SPI
Sensitivity 0.244mg/LSB, 0.025°/LSB
Voltage - Supply 3V ~ 3.6V
Embedded No
Contents Board(s)
Utilized IC / Part ADIS16209
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1600914-ADIS16209/PCBZ
Ultra Librarian 3D Model Ultra Librarian ADIS16209/PCBZ CAD Model

Description
