Product Overview: ADG604YRUZ from Analog Devices Inc.

The ADG604YRUZ is a high-performance CMOS analog multiplexer from Analog Devices Inc., renowned for its precision and reliability in signal routing applications. This device is designed to connect one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. The ADG604 operates on a single 1.8 V to 5.5 V supply, making it versatile for a wide range of applications.

Key Features:

• Low Voltage Operation: The ADG604YRUZ is optimized for single-supply operation, ranging from 1.8 V to 5.5 V, which is ideal for portable and battery-powered systems.
• Low On Resistance: The on resistance profile is very flat over the full analog input range, which ensures excellent linearity and low distortion when passing analog signals.
• High Throughput: It offers a fast switching speed, contributing to higher overall system throughput.
• Low Power Consumption: With its CMOS construction, the device offers low power dissipation yet provides high switching speed.
• Wide Operating Temperature Range: The device is specified for operation over the extended industrial temperature range of -40°C to +85°C, ensuring reliability in harsh environments.

Applications:

The ADG604YRUZ is ideally suited for a variety of applications where high performance and low power operation are required. It is commonly used in:

• Data acquisition systems
• Battery-powered systems
• Audio and video signal routing
• Communication systems
• Relay replacement

Package and Quality:

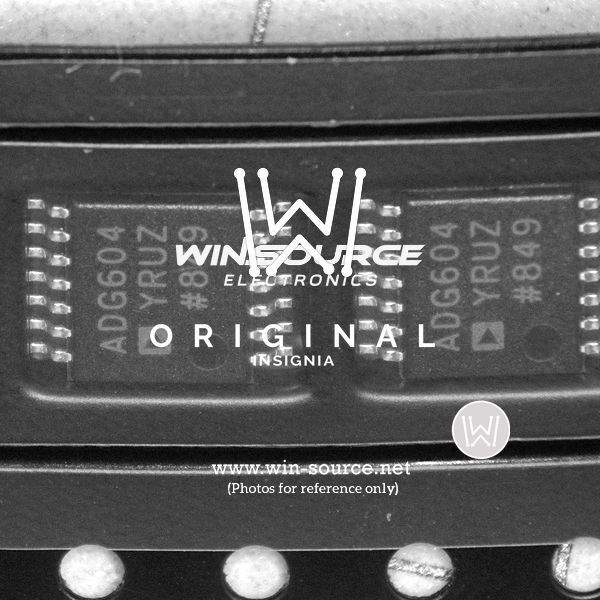

The device comes in a compact TSSOP-16 package, offering a space-saving solution for densely packed PCBs. Analog Devices Inc. ensures that the ADG604YRUZ meets rigorous quality standards, providing a reliable and consistent performance for the most demanding applications.

With its combination of low power operation, high-speed switching, and robust construction, the ADG604YRUZ is an excellent choice for designers looking for a multiplexer that delivers both precision and efficiency.
