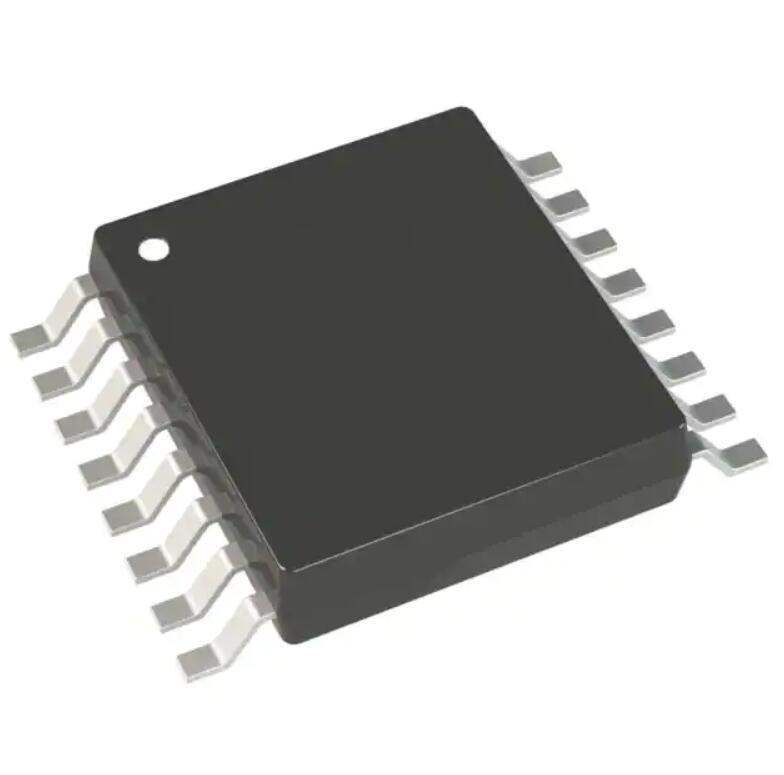

The ADG5413FBRUZ-RL7 is a robust, high-performance analog switch from Analog Devices Inc., designed to deliver superior signal integrity and reliability for a broad range of applications. This component is part of the ADG5413 series, which is known for its high electrostatic discharge (ESD) protection and extended signal range capabilities.

Key Features

• Quad SPST Switch Configuration: The device features four single-pole single-throw (SPST) switches, providing flexibility for various signal routing needs.
• Advanced ESD Protection: Withstands high ESD events, ensuring robustness and longevity in harsh electrical environments.
• Latch-Up Proof: The switch is designed to be immune to latch-up, which is critical for applications that require high reliability.
• Wide Operating Voltage Range: The ADG5413F operates efficiently across a broad range of supply voltages, accommodating various system requirements.
• Low On-Resistance: The low on-resistance of the switch minimizes signal distortion and power loss, enhancing overall system performance.
• Break-Before-Make Switching: This feature prevents momentary short circuits when switching between signals, protecting sensitive components.

Applications

The ADG5413FBRUZ-RL7 is suitable for a wide array of applications that require high precision and reliability, including but not limited to:

• Data acquisition systems
• Instrumentation
• Communication systems
• Relay replacements
• Battery-powered systems

Product Specifications

The ADG5413FBRUZ-RL7 by Analog Devices Inc. is a testament to the company's commitment to providing high-quality, durable, and precise components for sophisticated electronic systems.
