Overview of ADG5412BRUZ-REEL7

The ADG5412BRUZ-REEL7 is a high-performance, quad SPST switch from Analog Devices Inc., designed for precision applications that require low on-resistance and high off-isolation. This component is part of Analog Devices' renowned switch and multiplexer product line, which is widely recognized for its reliability and performance.

Key Features

• Low On-Resistance: The switch offers an exceptionally low on-resistance, which remains flat over the full signal range, ensuring minimal signal distortion and power loss.
• High Off-Isolation: With high off-isolation characteristics, the ADG5412BRUZ-REEL7 prevents unwanted signal coupling, thereby improving the overall performance of the system in which it is used.
• Single Supply Operation: The device is capable of operating from a single 12 V to 30 V supply or a dual ±5 V to ±22 V supply, providing flexibility in various application scenarios.
• Low Capacitance: The switch features low capacitance, which is critical for fast switching applications and maintaining signal integrity.

Applications

The ADG5412BRUZ-REEL7 is ideal for a wide range of applications, including:

• Automatic test equipment
• Data acquisition systems
• Communication systems
• Sample hold systems
• Battery-powered systems

Quality and Reliability

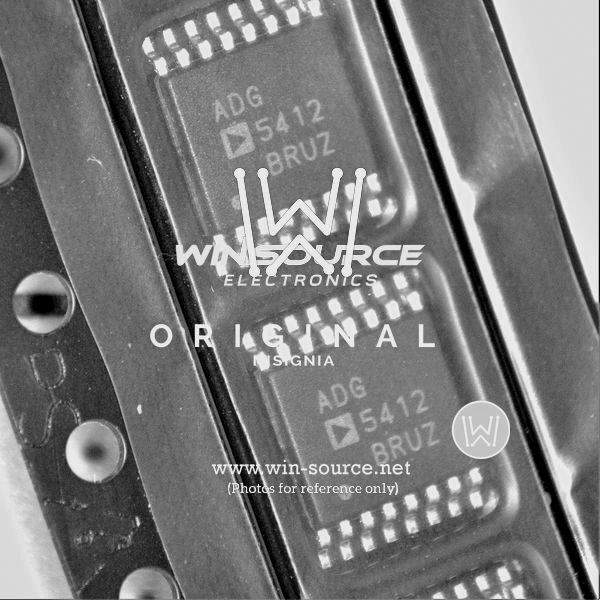

Analog Devices Inc. is known for its commitment to quality, and the ADG5412BRUZ-REEL7 is no exception. It is provided in a 16-lead TSSOP package and is available in a tape and reel format (REEL7), which is suitable for automated assembly processes. This product is designed to meet the stringent requirements of industrial and commercial applications, ensuring both robustness and longevity.

Conclusion

The ADG5412BRUZ-REEL7 from Analog Devices Inc. represents a blend of high performance, versatility, and reliability. Whether it's for precise measurement equipment or high-speed digital systems, this quad SPST switch is an excellent choice for designers looking to optimize their signal routing with minimal signal loss and distortion.
