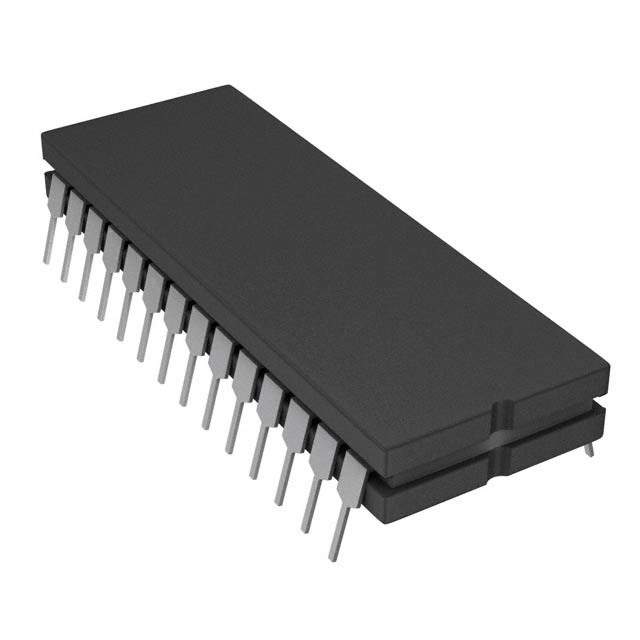

The ADG506ABQ is a high-performance, CMOS analog multiplexer from Analog Devices Inc., a leader in the semiconductor industry. This device comes in a robust 28-lead CERDIP package, designed to offer exceptional durability and reliability for a wide array of applications. The ADG506ABQ is part of the ADG506 series, which is known for its precision in switching and routing analog signals in numerous electronic systems.

Key Features

• Multiple Channels: The ADG506ABQ features 16 single-ended channels, providing ample flexibility for complex signal management.
• Low On Resistance: This device boasts a low on resistance (typically 80 ohms), which minimizes signal attenuation and ensures high-quality signal transmission.
• High Off Isolation: With high off isolation, the ADG506ABQ prevents signal leakage between channels, maintaining signal integrity and reducing cross-talk.
• Single 15 V or Dual ±15 V Supply: The device can operate on either a single 15 V power supply or dual ±15 V supplies, making it versatile for various power environments.
• Break-Before-Make Switching: This feature ensures that one channel is disconnected before another connects, eliminating the possibility of momentary shorting when switching between channels.

Applications

The ADG506ABQ is suitable for a broad range of applications including:

• Data acquisition systems
• Communication systems
• Test equipment
• Audio and video switching
• Process control systems

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the ADG506ABQ is no exception. Each device undergoes rigorous testing to ensure it meets the highest standards for performance and durability. With the ADG506ABQ, engineers and designers can trust in a reliable, high-quality solution for their analog multiplexing needs.

Ordering Information

To order the ADG506ABQ or to obtain more information about this analog multiplexer, please visit the Analog Devices Inc. website or contact an authorized distributor. Ensure you reference the exact part number ADG506ABQ to receive the product that matches these specifications.
