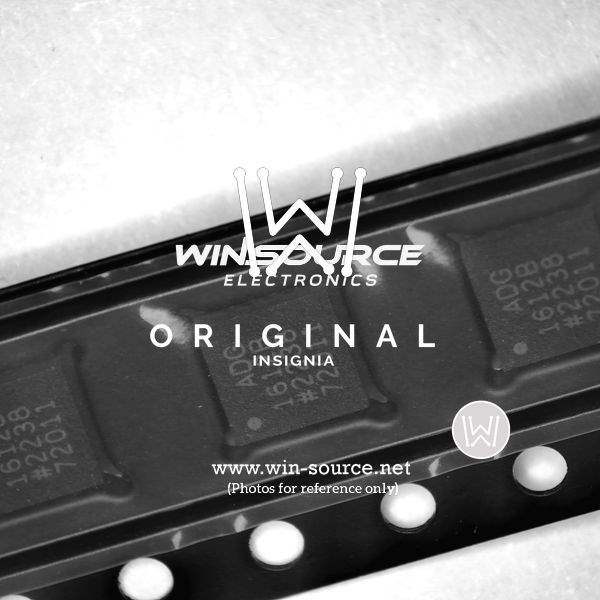

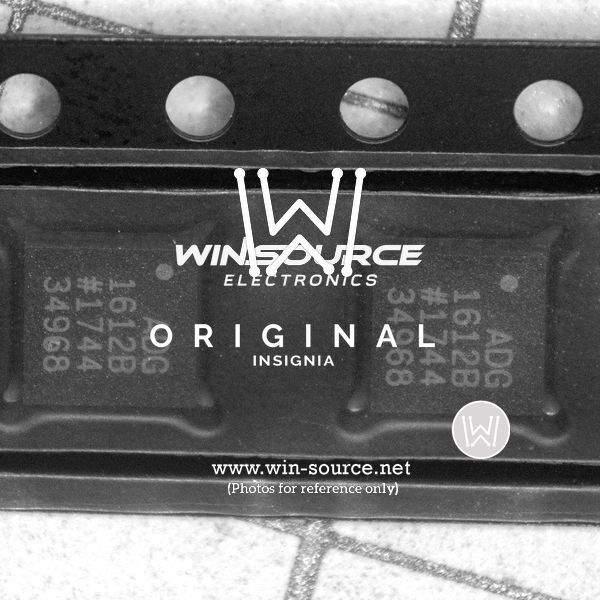

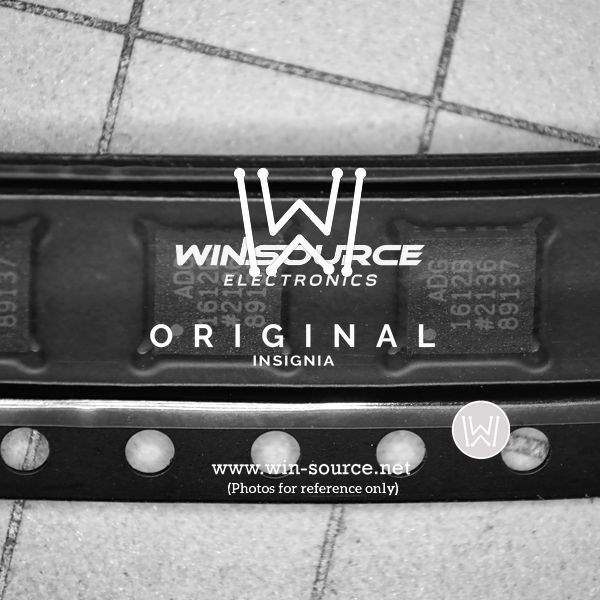

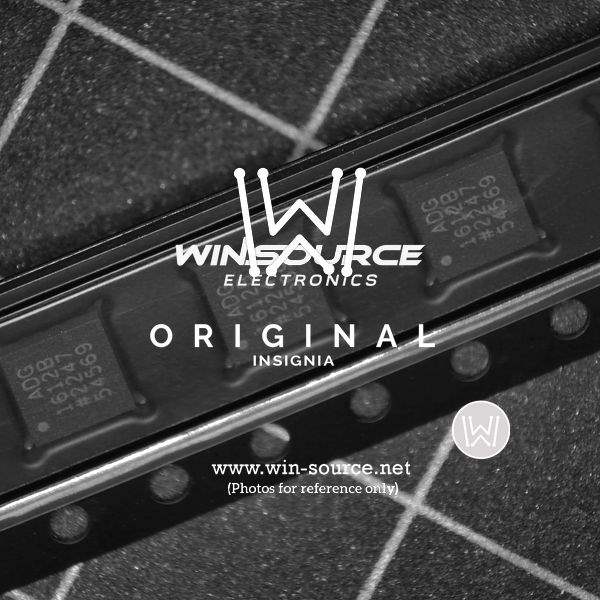

ADG1612BCPZ-REEL7 - High-Performance Analog Switch from Analog Devices Inc.

The ADG1612BCPZ-REEL7 is a monolithic, quad single-pole, single-throw (SPST) switch from Analog Devices Inc., a leading innovator in the field of high-performance analog processing. This product is part of their comprehensive portfolio of switch and multiplexer devices, designed to provide efficient and reliable solutions for a wide range of applications.

Constructed with Analog Devices' proprietary iCMOS® (industrial CMOS) technology, the ADG1612BCPZ-REEL7 offers a perfect blend of high performance and low power consumption. This switch is optimized for precision and robustness, making it an ideal choice for signal routing in data acquisition systems, communication systems, and various other applications that require high-speed and bidirectional data flow.

Key Features:

• Low On-Resistance: The device features a low on-resistance (typically 1.5 Ω), ensuring minimal signal distortion and efficient conduction when the switch is in the ON state.
• Single Supply Operation: It operates from a single 3.3 V to 5 V power supply, simplifying power management in system designs.
• High Bandwidth: The switch boasts a high bandwidth (>100 MHz), allowing it to pass high-frequency signals with minimal attenuation.
• Low Power Consumption: With its low power consumption, the ADG1612BCPZ-REEL7 is suitable for portable and battery-powered applications where power efficiency is critical.
• Robust ESD Protection: The device includes enhanced electrostatic discharge (ESD) protection, safeguarding it against the damages caused by static electricity.
• Compact LFCSP Package: Housed in a compact 16-lead LFCSP (3 mm × 3 mm) package, the ADG1612BCPZ-REEL7 is designed for space-constrained applications.

Applications:

The versatility of the ADG1612BCPZ-REEL7 makes it suitable for a variety of applications, such as:

• Relay replacement
• Automatic test equipment
• Data acquisition systems
• Audio and video switching
• Sample and hold systems
• Battery-powered systems

With its combination of high performance, low power, and compact footprint, the ADG1612BCPZ-REEL7 from Analog Devices Inc. is a top choice for designers looking to enhance the efficiency and reliability of their signal routing applications.
