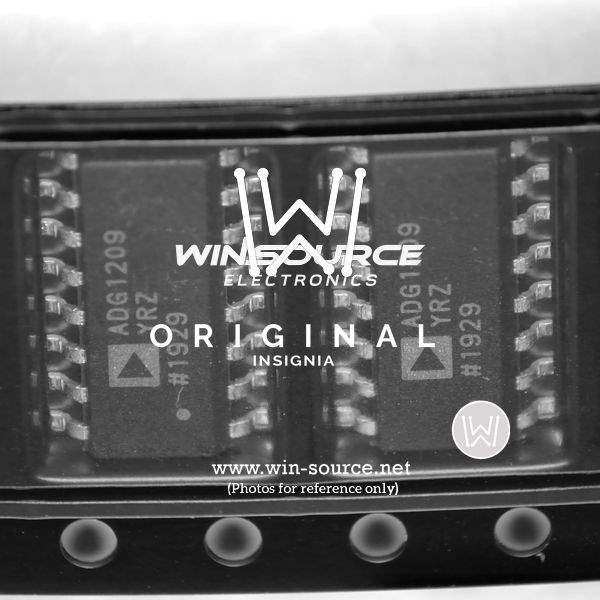

ADG1209YRZ-REEL7 - High-Performance, 4-Channel Multiplexer

The ADG1209YRZ-REEL7 is a monolithic, high-performance analog multiplexer from Analog Devices Inc., renowned for its precision and robust design. This 4-channel multiplexer is part of a series that delivers exceptional signal integrity, making it an ideal choice for a wide range of data acquisition systems and test equipment.

Featuring a single 4:1 multiplexer configuration, the ADG1209YRZ-REEL7 allows for the precise routing of analog signals to a single output channel from any of its four inputs. Its design ensures minimal signal distortion and attenuation, with a low on-resistance and on-resistance flatness that is critical for maintaining the integrity of the signal path.

One of the key attributes of this device is its low power consumption, which makes it suitable for battery-operated and portable devices where power efficiency is a priority. The ADG1209YRZ-REEL7 operates from a single 3 V to 5 V power supply, providing design flexibility for various applications.

The multiplexer is packaged in a compact, surface-mount, 16-lead TSSOP package, making it an excellent choice for space-constrained applications. Its enhanced electrostatic discharge (ESD) protection ensures reliability and longevity in harsh electrical environments.

Additional features include fast switching times, which allow for high-speed signal processing, and a digital select input that is compatible with standard CMOS levels. The ADG1209YRZ-REEL7 is also characterized for operation from -40°C to +85°C, ensuring performance across a broad range of temperatures.

With its combination of performance, power efficiency, and robustness, the ADG1209YRZ-REEL7 from Analog Devices Inc. is an excellent choice for engineers looking to design systems requiring precise signal routing with minimal signal degradation.

Key Specifications:

• 4:1 Single Channel Multiplexer
• Low On-Resistance (< 4.5 Ω typical)
• Low Power Consumption
• 3 V to 5 V Single Supply Operation
• Fast Switching Times
• ESD Protection
• 16-Lead TSSOP Package
• Temperature Range: -40°C to +85°C
