The ADD5203ACPZ-RL is a high-efficiency, integrated backlight driver for white LED panels, produced by the renowned semiconductor company Analog Devices Inc. This component is specifically designed to cater to the power requirements of medium-sized LCD panels utilized in a diverse range of electronic devices such as notebooks, car navigation systems, and portable media players.

Key Features and Benefits

• Multiple Output Channels: The ADD5203ACPZ-RL comes with eight individually regulated current sources for up to 80 mA per channel, providing uniform brightness across the display and enhancing the visual experience.
• High Efficiency: With an efficiency rate of up to 92.5%, this driver ensures minimal power loss, leading to extended battery life in portable applications.
• Dimming Capability: It features a PWM dimming interface which allows for precise control over the backlight brightness, thereby improving the display's readability in various lighting conditions and reducing power consumption.
• Integrated Boost Converter: The device includes a built-in boost converter with a wide input voltage range, ensuring consistent performance even with fluctuating power supply conditions.
• Protection Features: The ADD5203ACPZ-RL is equipped with multiple protection mechanisms, including over-voltage, over-temperature, and LED short-circuit protection, thus ensuring reliability and safety in operation.

Package and Availability

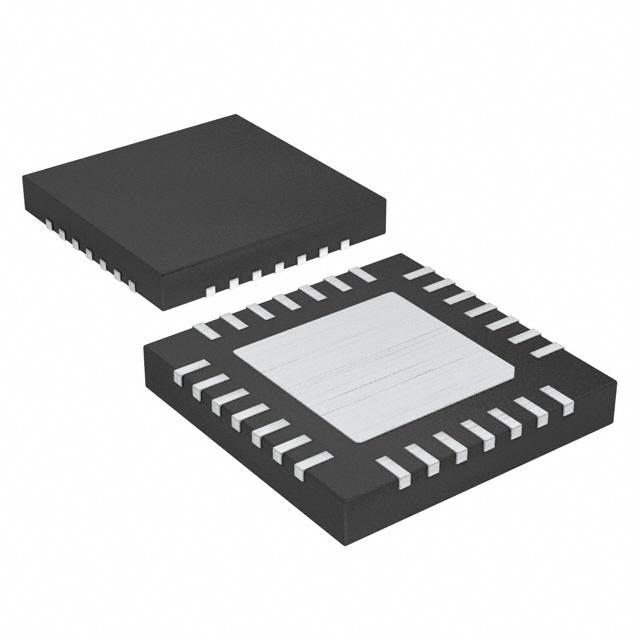

The device is offered in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) which is ideal for space-constrained applications. The package is designed to optimize thermal performance and improve the overall durability of the product. The ADD5203ACPZ-RL variant comes in tape and reel packaging, making it suitable for automated assembly processes and mass production.

Applications

This LED driver is versatile and can be used in a variety of applications where consistent and efficient backlighting is required. Some common applications include:

• LCD Backlighting for Notebooks and Tablets
• Automotive Displays
• Portable Media Players
• GPS Navigation Systems
• Industrial and Medical Displays

With its robust feature set and high reliability, the ADD5203ACPZ-RL from Analog Devices Inc. is an excellent choice for designers seeking a high-quality backlight driver solution.
