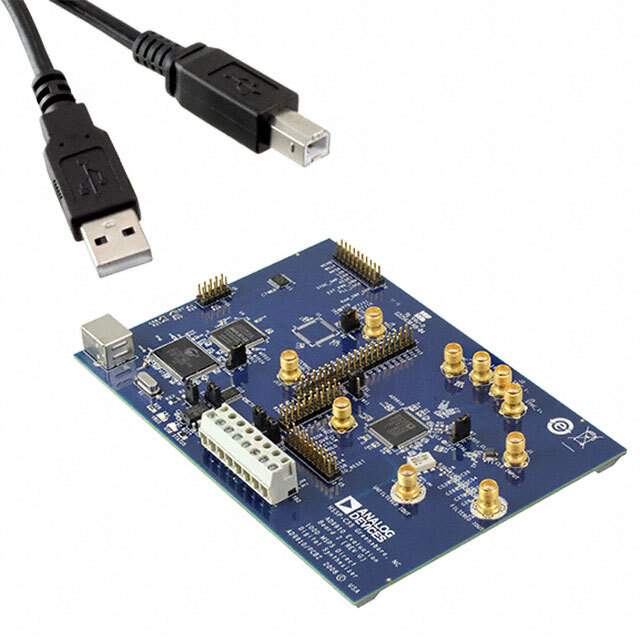

Analog Devices Inc. AD9910/PCBZ Evaluation Board

The AD9910/PCBZ is a high-performance evaluation board from Analog Devices Inc., designed to showcase the capabilities of the AD9910 Direct Digital Synthesizer (DDS) IC. This board provides engineers and developers a comprehensive platform to assess the features and performance of the AD9910, which is ideal for applications requiring complex waveform generation, high resolution, and fast switching speeds.

The AD9910 is a state-of-the-art DDS chip that offers a 1 GSPS (Giga Samples Per Second) update rate, 14-bit DAC (Digital-to-Analog Converter), and an integrated phase-locked loop (PLL) that can multiply the onboard 25 MHz crystal oscillator up to 1 GHz. This makes the AD9910/PCBZ an excellent choice for agile frequency synthesis in communication systems, instrumentation, and radar applications.

Key Features of the AD9910/PCBZ Evaluation Board:

• High-Speed DDS: The board features the AD9910 DDS IC, which supports a 1 GSPS update rate, providing users with a high-speed waveform generation capability.
• Integrated PLL: With an integrated PLL, users can achieve stable and precise frequency multiplication for their applications.
• USB Interface: The evaluation board includes a USB interface for easy connection to a PC, enabling convenient control and programming of the DDS.
• Software Support: Analog Devices provides software that allows users to program and control the AD9910 via the USB interface, offering a user-friendly graphical interface to configure the DDS parameters.
• Flexible Clocking Options: Users can utilize the onboard crystal oscillator or supply an external clock source to meet specific application requirements.
• Comprehensive Documentation: The AD9910/PCBZ comes with detailed documentation, including a user guide, datasheets, and reference materials to assist in the evaluation process.

The evaluation board is equipped with various connectors and jumpers, providing flexibility in signal routing and functionality. It also includes test points for critical signals, facilitating easy probing and measurement. With its robust feature set and versatile design, the AD9910/PCBZ is an invaluable tool for designers looking to leverage the power of the AD9910 DDS in their next project.

Whether you're developing sophisticated communication systems, precision instrumentation, or advanced radar platforms, the AD9910/PCBZ evaluation board from Analog Devices Inc. offers a reliable and efficient solution for your waveform generation needs.
