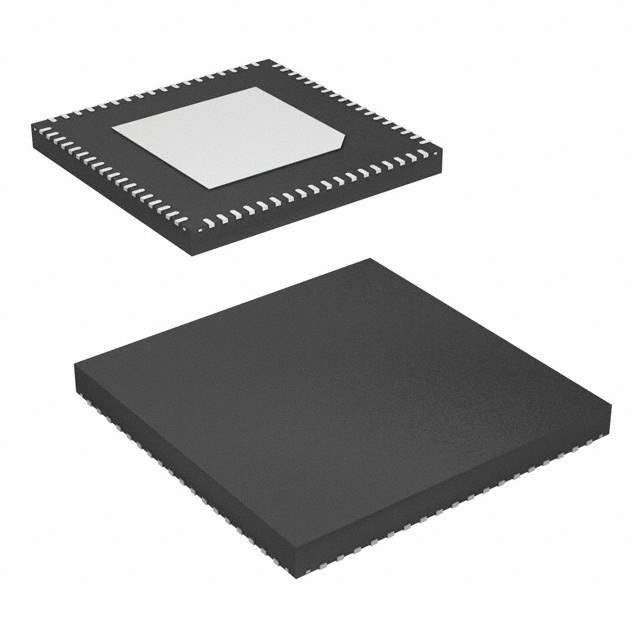

Product Overview: AD9523BCPZ-REEL7

The AD9523BCPZ-REEL7 is a high-performance, multi-output clock generator from Analog Devices Inc. designed to meet the stringent requirements of communication infrastructure, data converters, and high-speed digital signal processing (DSP) systems. This clock generator provides a low-jitter, low-phase noise clock distribution solution that is essential for system performance in high-speed communication systems.

Key Features:

• Integrated PLL (Phase-Locked Loop): The device features a PLL with a VCO (Voltage-Controlled Oscillator) that operates at a frequency range of 2.45 GHz to 2.95 GHz, providing precise frequency synthesis and clock distribution.
• Multiple Outputs: It offers up to 14 LVPECL (Low Voltage Positive Emitter-Coupled Logic) outputs, 2 LVDS (Low-Voltage Differential Signaling) outputs, and 2 CMOS outputs, allowing for a wide range of clocking configurations.
• Low Jitter Performance: The AD9523BCPZ-REEL7 is designed to deliver a low jitter performance, which is critical for maintaining signal integrity in high-speed data communication.
• Programmable Output Levels: Output voltage levels are programmable to ensure compatibility with various logic standards and to provide flexibility in system design.
• Flexible Reference Inputs: The device supports differential or single-ended reference clock inputs, providing design versatility for different system architectures.
• Power Efficiency: With its advanced design, this clock generator operates with high power efficiency, reducing the thermal footprint and power consumption of the system.

Applications:

• Wireless and Wired Communication Infrastructure
• High-speed ADCs and DACs
• Digital Signal Processing (DSP)
• Networking Equipment
• Test and Measurement Systems

The AD9523BCPZ-REEL7 is available in a compact LFCSP (Lead Frame Chip Scale Package) and is part of a tape and reel package, making it suitable for high-volume production. With its robust feature set and performance, the AD9523BCPZ-REEL7 is an ideal choice for engineers looking for a reliable clock generation and distribution solution.
