Product Overview: AD9445BSVZ-125 by Analog Devices Inc.

The AD9445BSVZ-125 is a high-performance, 14-bit analog-to-digital converter (ADC) designed and manufactured by Analog Devices Inc., a leader in precision high-performance signal processing technology. This ADC is part of their extensive range of data converters, offering an exceptional balance of speed and resolution that is well-suited for applications requiring high dynamic range and fast data acquisition.

Key Features

• Resolution: The AD9445 features a 14-bit resolution that provides fine detail in signal representation, making it ideal for applications where high precision is paramount.
• Sampling Rate: With a maximum sampling rate of 125 MSPS (Mega Samples Per Second), this ADC is capable of converting analog signals with high-frequency content, ensuring minimal signal aliasing and fidelity loss.
• Input Range: It has a flexible input range, accommodating a variety of signal amplitudes which can be critical for diverse applications.
• Data Interface: The product features a parallel data interface for easy integration with digital signal processors (DSPs) and field-programmable gate arrays (FPGAs).

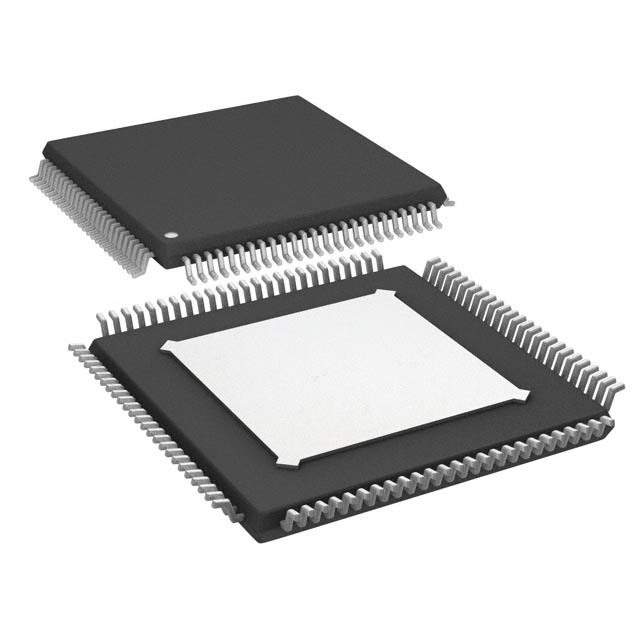

• Package Type: The AD9445BSVZ-125 comes in a compact 100-TQFP (Thin Quad Flat Pack) package, making it suitable for space-constrained applications.

Applications

The converter is designed to serve a wide array of applications, including but not limited to:

• Medical Imaging Systems
• Communications Systems
• Instrumentation
• Radar and Satellite Receivers
• Test and Measurement Equipment

Technical Specifications

The AD9445BSVZ-125 is an exceptional choice for designers who require a high-speed ADC with superior accuracy and resolution. Its robust design and high-quality performance make it an essential component for precision-demanding applications.
