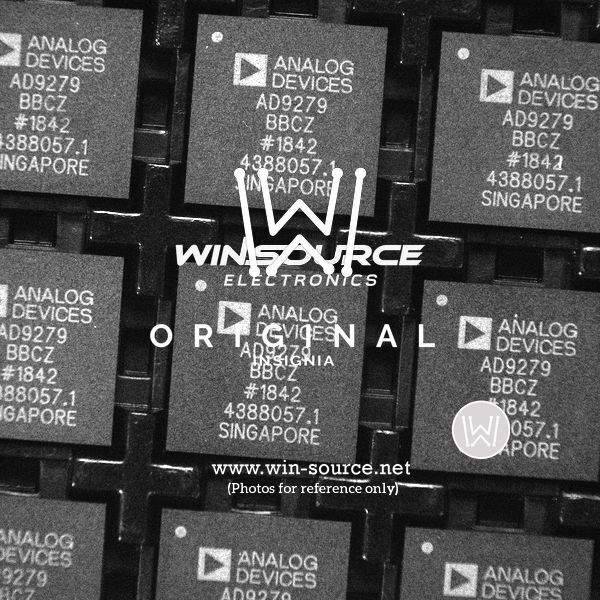

The AD9279BBCZ from Analog Devices Inc. integrates eight channels of a low noise amplifier (LNA), a variable gain amplifier (VGA), an anti-aliasing filter (AAF), and a 12-bit, 10 MSPS to 80 MSPS analog-to-digital converter (ADC) along with an I/Q demodulator for continuous wave (CW) Doppler processing. This multifunctional device is specifically designed for medical ultrasound applications, but its versatility allows for its use in a variety of signal processing applications.

Key Features:

• Integrated Octal Channels: The AD9279BBCZ features eight channels, each with an LNA, VGA, AAF, and ADC, reducing the need for external components and simplifying design.
• High Performance: The device offers a high level of integration and performance, with a 12-bit ADC resolution and sampling rates ranging from 10 MSPS to 80 MSPS, ensuring precise and fast data conversion.
• CW I/Q Demodulation: Equipped with an I/Q demodulator for CW Doppler processing, the AD9279BBCZ is ideal for medical ultrasound imaging, providing high-quality Doppler audio signals.
• Low Noise Amplifier: The LNA provides a low-noise figure which is critical for high-sensitivity applications, ensuring clear signal acquisition.
• Programmable Gain: The VGA offers a programmable gain range, allowing for flexible signal amplification to match the requirements of various applications.
• Integrated AAF: The on-chip AAF limits the bandwidth of the input signal to prevent aliasing, ensuring signal integrity before digitization.
• Power Efficiency: This device is designed with power efficiency in mind, making it suitable for portable applications where power consumption is a concern.

Applications:

• Medical Ultrasound Imaging Systems
• Portable and Handheld Medical Imaging Devices
• Advanced Signal Processing Systems

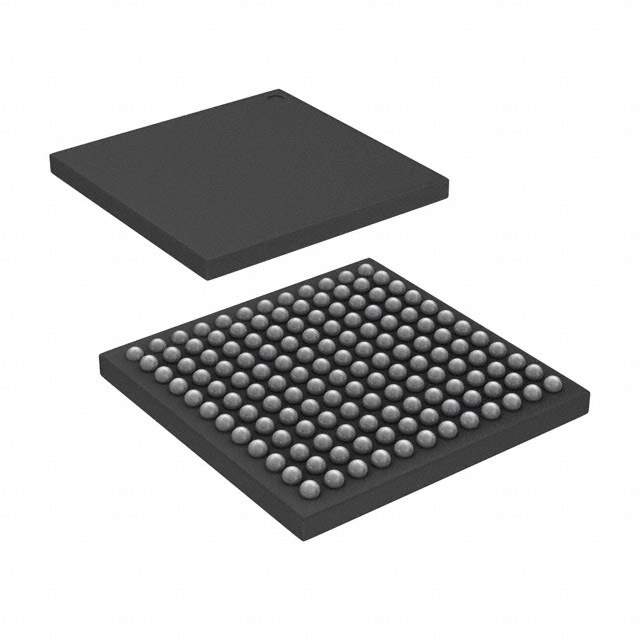

The AD9279BBCZ is available in a compact CSP-BGA package, making it an excellent choice for space-constrained applications. Its high level of integration, combined with its exceptional performance, makes it a go-to solution for designers looking to enhance their ultrasound systems with state-of-the-art technology from Analog Devices Inc.
