The AD9278BBCZ is a highly integrated, octal-channel, ultrasound receiver from Analog Devices Inc., designed to cater to high-performance diagnostic applications. This product combines low-noise amplifiers (LNA), variable gain amplifiers (VGA), anti-aliasing filters (AAF), and 14-bit analog-to-digital converters (ADC) to provide a complete front-end solution for ultrasound systems.

Featuring eight channels, the AD9278BBCZ offers a compact design that reduces system size and power consumption, while improving image quality and overall system performance. Each channel consists of an LNA with a programmable gain of 21.3 dB, a VGA with 31.5 dB of gain range, a third-order AAF, and a high-performance 14-bit ADC with a maximum sample rate of 65 MSPS.

The LNA offers a low noise figure and excellent input-referred noise performance, which is crucial for maintaining signal integrity in ultrasound applications. The VGA provides continuous gain control and fine granularity, allowing for precise amplitude adjustments to ensure optimal signal levels for the ADC. The integrated AAF limits the bandwidth of the input signal to prevent aliasing and preserve the integrity of the digitized data.

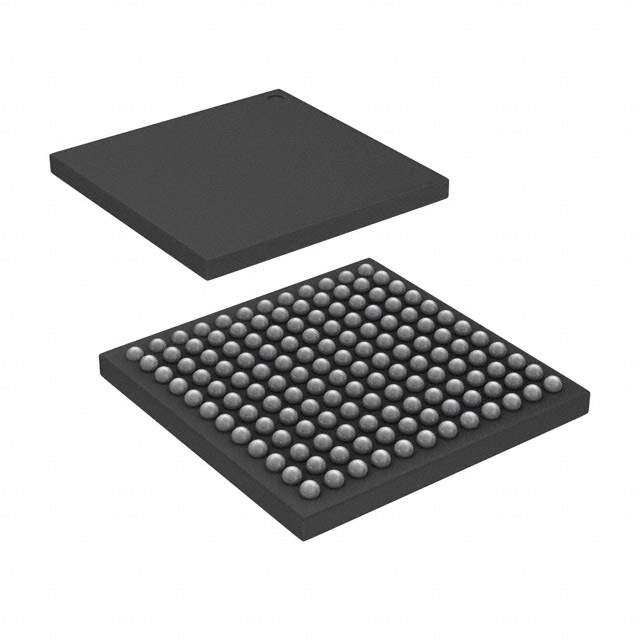

The AD9278BBCZ also features an on-chip, I/Q demodulator with programmable phase rotation, enabling coherent demodulation of CW signals. This is particularly useful for Doppler applications where blood flow velocity is measured. The product operates over a wide supply voltage range from 1.71 V to 1.89 V and is available in a compact, 10 mm × 10 mm, 144-ball CSP_BGA package.

With its high level of integration and performance, the AD9278BBCZ streamlines the design of medical ultrasound systems and is suitable for both portable and high-end cart-based systems. Analog Devices Inc. provides robust support and documentation, ensuring that integrating the AD9278BBCZ into your ultrasound application is as seamless as possible.
