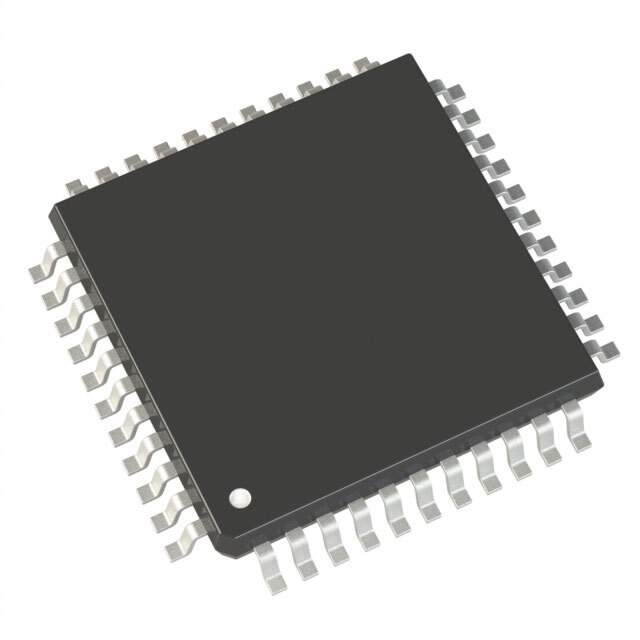

The AD9054ABST-135 from Analog Devices Inc. is a state-of-the-art analog-to-digital converter (ADC) that offers exceptional performance and flexibility for a wide range of data acquisition and signal processing applications. This high-speed ADC is capable of converting analog signals to 8-bit digital data at a sampling rate of up to 135 MSPS (mega samples per second).

Key Features

• High-speed 8-bit resolution
• Sampling rate up to 135 MSPS
• Low power consumption
• On-chip reference and track/hold function
• Single 5 V power supply operation
• Easy-to-use 28-lead TSSOP package

Designed with the needs of high-speed signal processing in mind, the AD9054ABST-135 is perfect for applications such as digital oscilloscopes, radar systems, and communications equipment. The device's high sampling rate and resolution enable it to capture fast transient events and convert them into digital data with high fidelity.

Power efficiency is a critical aspect of the AD9054ABST-135, making it suitable for portable and battery-powered devices where power consumption is a concern. The ADC operates on a single 5 V power supply, minimizing the complexity of power management in system design.

The on-chip reference voltage and track/hold function simplify the design process by reducing the number of external components required. This feature, combined with the device's compact 28-lead TSSOP (Thin Shrink Small Outline Package) packaging, makes it an excellent choice for space-constrained applications.

Whether for industrial, medical, or communication applications, the AD9054ABST-135 delivers the reliability and performance expected from a leading manufacturer like Analog Devices Inc. By integrating this ADC into your design, you can achieve high-speed, accurate data conversion with minimal design effort.
