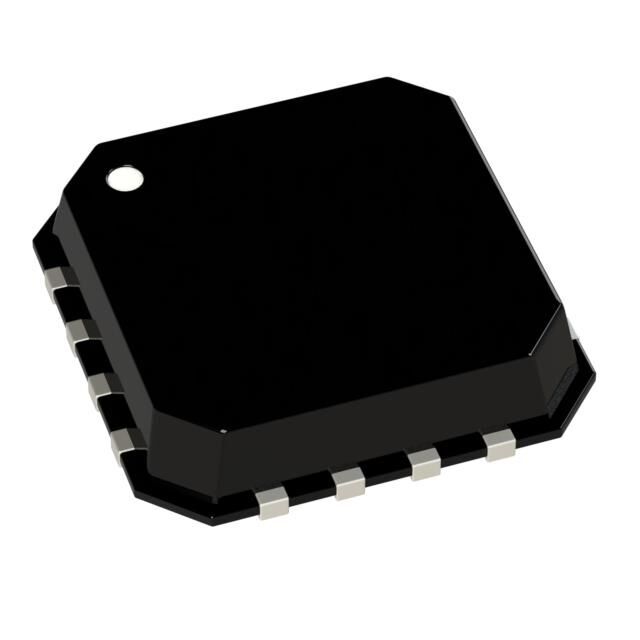

Same model may have multiple batches, images only for reference.
AD8556ACPZ-R2 Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AD8556ACPZ-R2

Part No AD8556ACPZ-R2
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description Zero-Drift Amplifier 1 Circuit 16-LFCSP-VQ (4x4)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Analog Devices Inc.
Series DigiTrim®
Packaging Reel - TR
Amplifier Type Zero-Drift
Number of Circuits 1
Slew Rate 1.2V/µs
Gain Bandwidth Product 2 MHz
Current - Input Bias 49 nA
Voltage - Input Offset 2 µV
Current - Supply 2mA
Current - Output / Channel 10 mA
Voltage - Supply Span (Min) 4.5 V
Voltage - Supply Span (Max) 5.5 V
Temperature Range - Operating -40°C ~ 140°C
Mounting Type Surface Mount
Package / Case 16-VQFN Exposed Pad, CSP
Supplier Device Package 16-LFCSP-VQ (4x4)
Base Product Number AD8556
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1481780-AD8556ACPZ-R2
Ultra Librarian 3D Model Ultra Librarian AD8556ACPZ-R2 CAD Model
