The AD8150ASTZ is a high-performance digital crosspoint switch manufactured by Analog Devices Inc., a leading company in the semiconductor industry. This component is designed to route high-speed signals with exceptional signal integrity, making it an ideal choice for various applications such as data communications, telecommunications, and video broadcasting.

Key Features

• High-Speed Operation: The AD8150ASTZ is capable of operating at speeds up to 3.2 Gbps, ensuring rapid signal processing and data transmission.
• Flexibility: With a 24 x 24 switch matrix, it offers a high level of routing flexibility, allowing users to configure multiple signal paths according to their specific requirements.
• Low Crosstalk: It features low crosstalk between channels, which minimizes interference and preserves signal integrity for reliable performance.
• Programmable: The device can be easily programmed via a serial or parallel interface, providing a customizable solution for complex systems.
• Single 2.5 V Supply: Operating on a single 2.5 V power supply, the AD8150ASTZ is designed for low power consumption, which is critical for power-sensitive applications.

Applications

• Data Communications
• Telecommunications
• Video Switching and Routing
• Signal Distribution
• Networking Equipment

Technical Specifications

Parameter Value Part Number AD8150ASTZ Switch Matrix 24 x 24 Max Data Rate 3.2 Gbps Supply Voltage 2.5 V Package 100-LQFP (14x14)

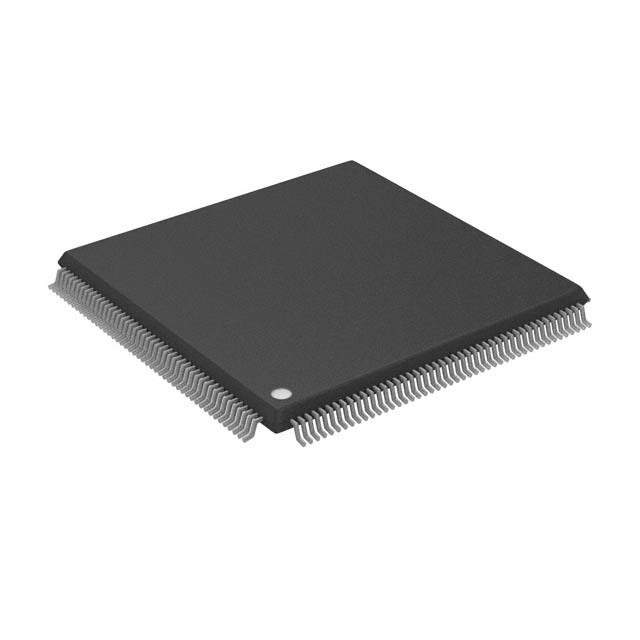

The AD8150ASTZ is available in a 100-lead LQFP (Low-profile Quad Flat Package) that fits well in space-constrained applications. With its advanced features and robust performance, the AD8150ASTZ is a superior choice for designers looking to implement a high-speed signal routing solution in their next project.
