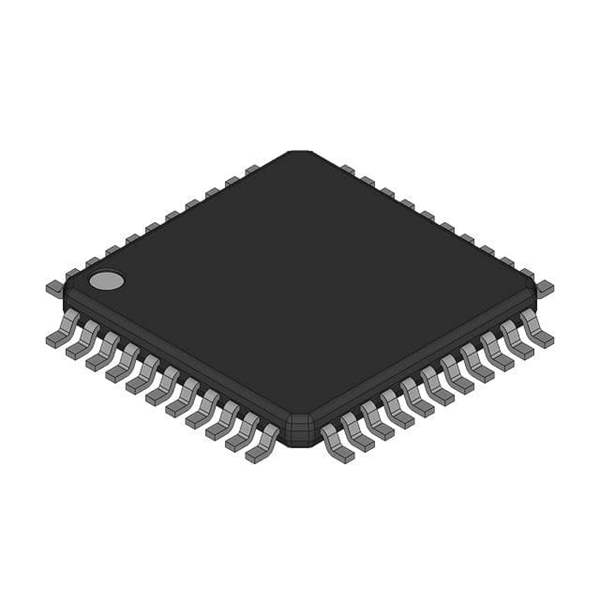

The AD7865ASZ-3REEL is a high-performance, 4-channel, 14-bit, 200 kSPS analog-to-digital converter (ADC) from Analog Devices Inc., a leader in high-performance semiconductors. This ADC is designed to operate with a 5 V power supply and features a pseudo-differential input structure for each channel, making it ideal for direct connection to transducers and low-level signal sources.

Key Features

• Multi-Channel Operation: It includes four single-ended or two pseudo-differential analog input channels.
• High Speed: With a throughput rate of 200 kSPS, it is suitable for high-speed applications that require multiple channel data acquisition.
• High Resolution: The 14-bit resolution ensures precise digital representation of the analog input signals.
• Low Power Consumption: It is designed for low power operation, which is critical for portable and battery-powered devices.
• Flexible Interface: It features a parallel interface that allows easy connection to microprocessors and DSPs.
• Software Configurable: Users can configure the ADC via software, enabling easy integration and customization for specific applications.

Applications

The AD7865ASZ-3REEL is versatile and can be used in a variety of applications including:

• Data acquisition systems
• Instrumentation and control systems
• Medical imaging
• Battery-powered and portable equipment

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the AD7865ASZ-3REEL is no exception. This product is available in a surface-mount package and is part of the REEL packaging series, which is designed for efficient handling and manufacturing processes.

Ordering Information

The AD7865ASZ-3REEL is available for order in tape and reel form, which facilitates automated assembly and is ideal for high-volume production environments. For detailed ordering information and to request samples, please visit the Analog Devices Inc. website or contact an authorized distributor.
