The AD7799BRUZ-RL from Analog Devices Inc. is a high precision, low power, 24-bit sigma-delta (ΣΔ) analog-to-digital converter (ADC) that is designed for applications requiring high-resolution measurement such as industrial process control, weighing scales, and instrumentation. This ADC offers a complete front-end solution for bridge sensors, including pressure sensors and strain gauges, making it an ideal choice for precision data acquisition systems.

Key Features:

• 24-bit Resolution: The high-resolution ADC provides precise measurement with a 24-bit data output, ensuring accuracy in the most demanding applications.
• Low Power Consumption: Designed for battery-powered devices, the AD7799BRUZ-RL operates with a low current consumption, thus extending the battery life of portable applications.
• On-Chip Calibration: The device features system calibration options (full-scale and zero-scale calibration) that can be initiated by the user, eliminating the need for external calibration components and simplifying system design.
• Multiple Operating Modes: The ADC supports multiple operating modes, including power-down, standby, and full power mode, allowing for flexible power management based on the application’s needs.
• Integrated Gain Amplifier: An on-chip programmable gain amplifier (PGA) provides gains ranging from 1 to 128, enabling the AD7799BRUZ-RL to amplify low-level signals from sensors.
• Robust Interface: The device includes a serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, facilitating easy integration into a wide variety of digital systems.

Applications:

• Industrial Process Control
• Weigh Scales
• Pressure Measurement
• Smart Transmitters
• Precision Instrumentation

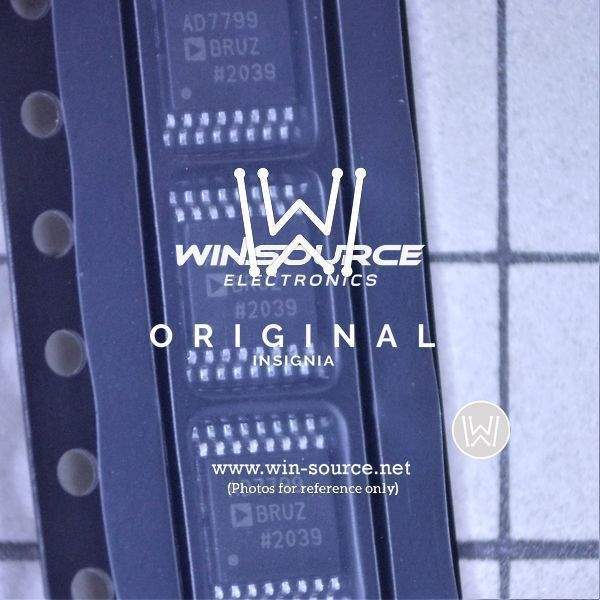

The AD7799BRUZ-RL is available in a 16-lead TSSOP package and is specified over the industrial temperature range of -40°C to +85°C. Its robust design and high precision make it an excellent choice for engineers and designers looking to improve the performance and efficiency of their data acquisition systems.
