Analog Devices Inc. AD7581BQ Multipurpose 8-Channel 12-Bit ADC

The AD7581BQ from Analog Devices Inc. is a versatile and high-performance 12-bit analog-to-digital converter (ADC) that offers 8 independent input channels. This integrated circuit is designed to cater to a wide array of applications that require accurate and rapid conversion from analog signals to digital data. Its robust design and flexible features make it an ideal choice for data acquisition systems, process control, and industrial automation.

At the core of the AD7581BQ lies a 12-bit successive approximation ADC, which ensures precise and consistent conversion results. This level of resolution is suitable for applications where a high degree of accuracy is paramount. The device operates within a single 5V power supply, making it convenient for integration into existing systems without the need for additional power regulation components.

One of the key attributes of the AD7581BQ is its multiplexed input configuration, which allows the eight channels to be used in various combinations, such as single-ended inputs or differential pairs. This flexibility enables designers to optimize the ADC for their specific measurement requirements, whether they are monitoring multiple sensors or need to measure a differential signal to reject common-mode noise.

The AD7581BQ also boasts a fast conversion time, with a typical throughput rate of 66 kHz, enabling real-time data processing in time-sensitive applications. Additionally, the device features an on-chip track-and-hold function, which captures the input signal at a precise moment, ensuring an accurate snapshot for conversion, even with rapidly varying signals.

Interface with microprocessors is straightforward, thanks to the AD7581BQ's versatile digital interface. The ADC provides both parallel and serial data output options, making it compatible with a wide range of microcontrollers and DSPs. Its digital error correction circuitry ensures the integrity of the conversion result, further enhancing the reliability of the system.

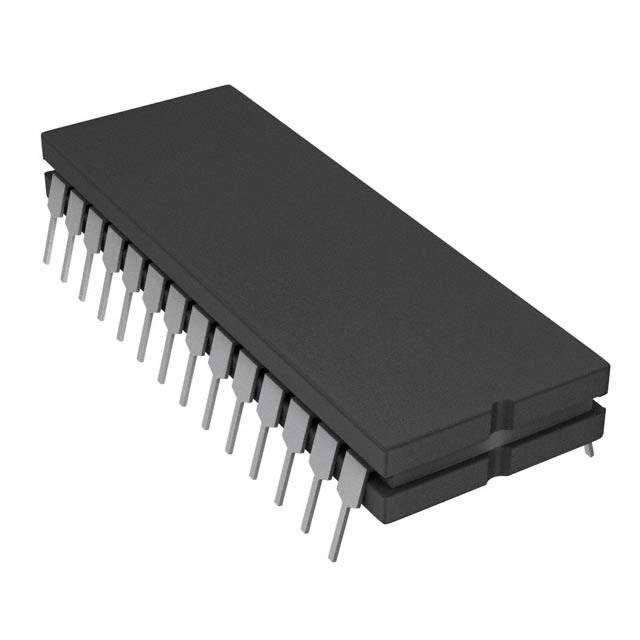

Encased in a ceramic DIP package, the AD7581BQ is engineered for durability and reliable performance in harsh industrial environments. With its combination of precision, speed, and versatility, the AD7581BQ is a top-tier solution for designers looking to implement a high-quality ADC in their systems.
