The AD7292BCPZ is a highly integrated, low power, multi-channel data acquisition system (DAS) from the renowned manufacturer Analog Devices Inc. This precision analog microcontroller is designed to cater to a broad range of applications that require multiple analog input channels, digital control, and an embedded processor for sophisticated signal processing and control tasks.

Key Features

• Multi-Channel Flexibility: The device boasts eight single-ended or four differential 12-bit analog-to-digital converters (ADCs) with a sample rate of up to 1 MSPS, providing ample flexibility for various sensing applications.
• Integrated Temperature Sensor: An on-chip temperature sensor allows for monitoring system health and provides additional data for compensation and control algorithms.
• Programmable Gain Amplifiers: Each ADC channel has a programmable gain amplifier (PGA), enabling the direct connection of sensors with various output ranges.
• Digital I/O: The AD7292BCPZ includes digital I/O ports that can be configured as general-purpose inputs or outputs, enhancing the device's versatility in system integration.
• Low Power Consumption: Designed with power-sensitive applications in mind, the device operates with a low power supply, minimizing energy consumption and heat generation.
• Communication Interface: The product features a SPI-compatible serial interface, facilitating easy communication with microcontrollers and digital systems.

Applications

The AD7292BCPZ is suitable for a variety of applications, including:

• Industrial automation and process control
• Data acquisition systems
• Portable and battery-powered devices
• Medical instruments
• Environmental monitoring systems

Package and Quality

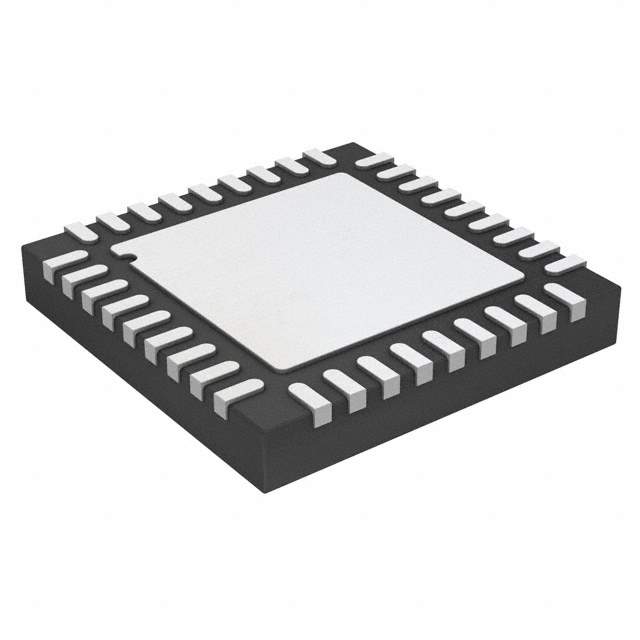

Enclosed in a compact 32-lead LFCSP (5 mm x 5 mm) package, the AD7292BCPZ is designed to fit into space-constrained applications while maintaining robust performance. Analog Devices Inc. adheres to strict quality control standards, ensuring that each unit meets the highest reliability and performance criteria.

With its comprehensive feature set, the AD7292BCPZ from Analog Devices Inc. stands out as a versatile and efficient solution for sophisticated multi-channel data acquisition needs.
