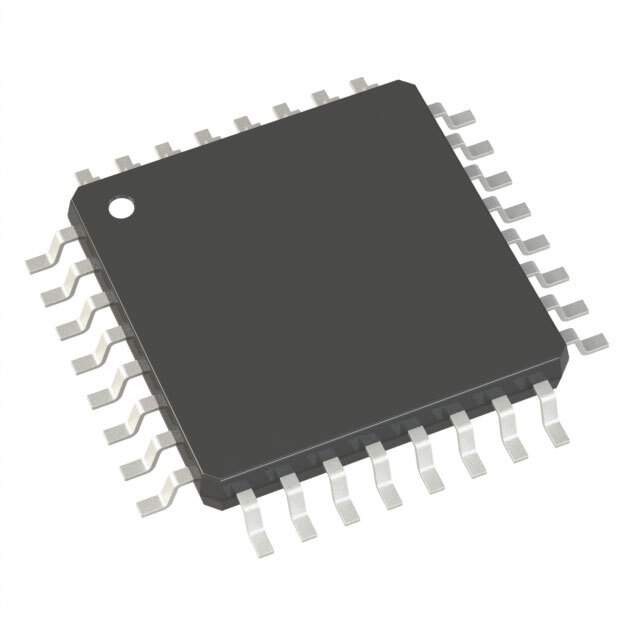

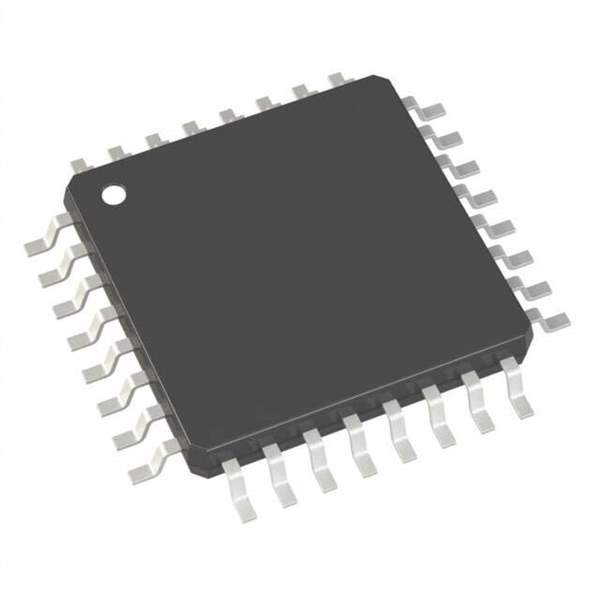

Analog Devices Inc. AD5763CSUZ Precision DAC

The AD5763CSUZ is a high-performance, 16-bit digital-to-analog converter (DAC) brought to you by Analog Devices Inc., a leader in precision signal processing technology. This advanced DAC is designed to meet the rigorous demands of industrial and communication applications, providing a combination of accuracy, stability, and versatility.

The AD5763CSUZ features a robust architecture that includes a precision voltage reference and output amplifier, which together enable it to deliver a bipolar voltage output directly from a single 5 V supply. This makes the device ideal for situations where space and power are at a premium, such as in compact industrial control systems and portable instrumentation.

One of the key attributes of the AD5763CSUZ is its high resolution. The 16-bit resolution ensures that the output signal is finely quantized, resulting in smooth and precise analog outputs. This is crucial for applications that require exact control of actuators or for generating precise reference voltages.

In addition to its high resolution, the AD5763CSUZ boasts an impressive set of features, including:

• Integrated output amplifier, reference, and power-on reset circuitry
• Bipolar output ranges of ±10 V, ±5 V, or an adjustable range
• Serial interface with SPI, QSPI™, MICROWIRE™, and DSP compatible Schmitt-trigger inputs
• On-chip precision output amplifier that can swing rail-to-rail
• Low glitch energy, which minimizes the impact of digital noise on the analog output

The device is housed in a compact 16-lead TSSOP package, making it easy to integrate into a wide variety of designs without taking up excessive board space. The AD5763CSUZ operates over a -40°C to +105°C temperature range, ensuring reliable performance in harsh environments.

Whether you're designing precision control systems, programmable logic controllers, or high-resolution data acquisition systems, the AD5763CSUZ from Analog Devices Inc. offers the performance and features necessary to achieve accurate and stable analog outputs, making it an essential component for your precision applications.
