Analog Devices Inc. AD5680BCPZ-2RL7: Precision Digital-to-Analog Converter

The AD5680BCPZ-2RL7, from Analog Devices Inc., is a high-precision, nanoDAC digital-to-analog converter (DAC) that offers 16-bit resolution in a compact LFCSP package. This device is designed for applications where space is at a premium without compromising on performance, making it an ideal solution for automated test equipment, data acquisition systems, and industrial automation.

Featuring a single 16-bit DAC channel, the AD5680BCPZ-2RL7 operates from a single 2.7V to 5.5V supply, providing a flexible solution for varying power requirements. The DAC utilizes a versatile 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with most microcontrollers and digital systems.

One of the key features of the AD5680BCPZ-2RL7 is its outstanding performance in terms of accuracy and stability. It boasts a ±1 LSB INL (integral nonlinearity) and ±1 LSB DNL (differential nonlinearity), which ensures precise and consistent analog outputs. Additionally, the device offers a guaranteed monotonic output over the entire operating temperature range of -40°C to +125°C, making it reliable in various environmental conditions.

With its on-chip precision output amplifier, the AD5680BCPZ-2RL7 can drive up to 20mA at the output, allowing direct connection to the load without the need for an external buffer. This feature simplifies the design and reduces the overall component count. Furthermore, the device includes a power-on reset circuit that ensures the DAC output powers up to zero scale or midscale and remains there until a valid write to the device takes place.

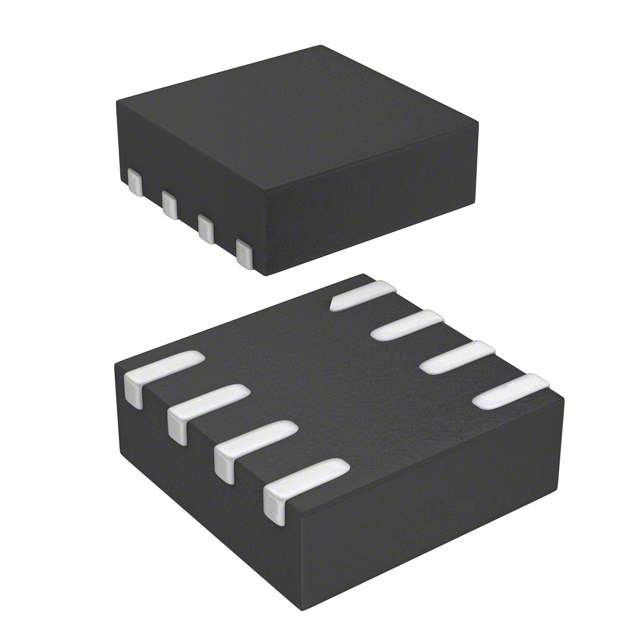

The AD5680BCPZ-2RL7 also comes with a power-down feature that reduces the current consumption of the device to 4μA at 5V when not in use, which is ideal for power-sensitive applications. This digital-to-analog converter is available in a 8-lead LFCSP package (3mm x 3mm) and is specified over the extended industrial temperature range.

For engineers and designers looking for a compact, high-precision DAC solution, the AD5680BCPZ-2RL7 from Analog Devices Inc. offers an excellent blend of performance, size, and ease of use, suitable for a wide range of applications.
