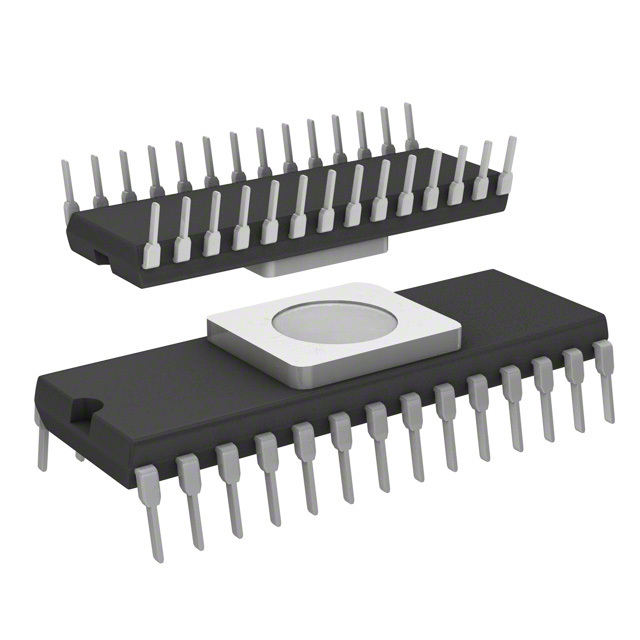

Product Overview: AD567SD/883B

The AD567SD/883B is a high-performance digital-to-analog converter (DAC) manufactured by Analog Devices Inc., a leading company in the semiconductor industry. This precision DAC is part of the military-grade product line, designed to meet the stringent requirements of aerospace and defense applications. The AD567SD/883B offers exceptional accuracy and stability, making it an ideal choice for critical systems where reliability is paramount.

Key Features

• Resolution: The AD567SD/883B is an 8-bit DAC, providing a fine level of granularity for analog signal conversion. With its high-resolution output, it ensures precise control over the analog signals in your system.
• Monolithic Design: This DAC is built as a monolithic integrated circuit, which means that all components are fabricated together on a single chip. This design enhances performance by reducing parasitic effects and improving reliability.
• Linearity: It boasts excellent linearity, minimizing errors in the conversion process and ensuring that the output closely matches the input digital signal.
• Temperature Range: The AD567SD/883B operates over a wide military temperature range, ensuring consistent performance even under extreme conditions.
• Settling Time: With a fast settling time, this DAC quickly reaches a stable output after receiving a digital input, which is crucial for real-time applications.
• Power Consumption: It is designed for low power consumption, helping to maintain energy efficiency in your system.

Applications

The robustness and precision of the AD567SD/883B make it suitable for a variety of high-reliability applications, including:

• Avionics and aerospace systems
• Military communication equipment
• Guidance and navigation systems
• Precision instrumentation
• Control systems

Quality and Reliability

Analog Devices Inc. is committed to providing products that meet the highest standards of quality and reliability. The AD567SD/883B is manufactured under stringent controls and is subject to rigorous testing to ensure it meets the 883B standards for military-grade components. Customers can trust this DAC to perform reliably in the most demanding environments.

For detailed specifications, application notes, and support resources, please visit the Analog Devices Inc. website or contact their support team for assistance with integrating the AD567SD/883B into your project.
